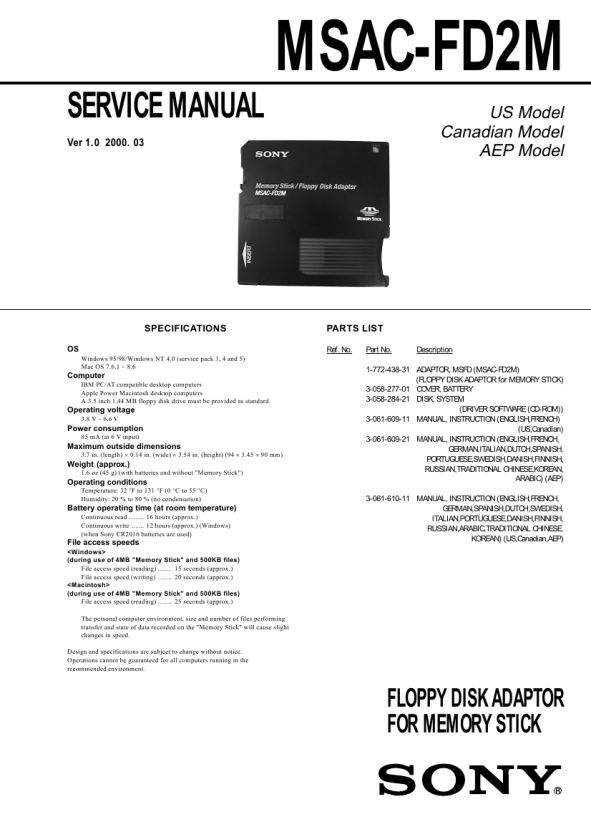

MSAC-FD2M
SERVICE MANUAL
Ver 1.0 2000. 03
US Model Canadian Model AEP Model
SPECIFICATIONS
OS
Windows 95/98/Windows NT 4.0 (service pack 3, 4 and 5) Mac OS 7.6.1 ~ 8.6
PARTS LIST
Ref. No. Part No. Description (FLOPPY DISK ADAPTOR for MEMORY STICK) 3-058-277-01 COVER, BATTERY 3-058-284-21 DISK, SYSTEM (DRIVER SOFTWARE (CD-ROM)) 3-061-609-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH) (US,Canadian) 3-061-609-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH, GERMAN,ITALIAN,DUTCH,SPANISH, PORTUGUESE,SWEDISH,DANISH,FINNISH, RUSSIAN,TRADITIONAL CHINESE,KOREAN, ARABIC) (AEP) 3-061-610-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, GERMAN,SPANISH,DUTCH,SWEDISH, ITALIAN,PORTUGUESE,DANISH,FINNISH, RUSSIAN,ARABIC,TRADITIONAL CHINESE, KOREAN) (US,Canadian,AEP)
1-772-438-31 ADAPTOR, MSFD (MSAC-FD2M)
Computer
IBM PC/AT compatible desktop computers Apple Power Macintosh desktop computers A 3.5 inch 1.44 MB floppy disk drive must be provided as standard.
Operating voltage
3.8 V � 6.6 V
Power consumption
85 mA (at 6 V input)
Maximum outside dimensions
3.7 in. (length) � 0.14 in. (wide) � 3.54 in. (height) (94 � 3.45 � 90 mm)
Weight (approx.)
1.6 oz (45 g) (with batteries and without "Memory Stick") Temperature: 32 °F to 131 °F (0 °C to 55 °C) Humidity: 20 % to 80 % (no condensation)
Operating conditions
Battery operating time (at room temperature)
Continuous read ......... 16 hours (approx.) Continuous write ....... 12 hours (approx.) (Windows) (when Sony CR2016 batteries are used)
File access speeds
<Windows> (during use of 4MB "Memory Stick" and 500KB files) File access speed (reading) ........ 15 seconds (approx.) File access speed (writing) ........ 20 seconds (approx.) <Macintosh> (during use of 4MB "Memory Stick" and 500KB files) File access speed (reading) ........ 25 seconds (approx.) The personal computer environment, size and number of files performing transfer and state of data recorded on the "Memory Stick" will cause slight changes in speed. Design and specifications are subject to change without notice. Operations cannot be guaranteed for all computers running in the recommended environment.
FLOPPY DISK ADAPTOR FOR MEMORY STICK
�1�
|
|
|
> |
|
