SONY MHCRG33
Manual de Servicio

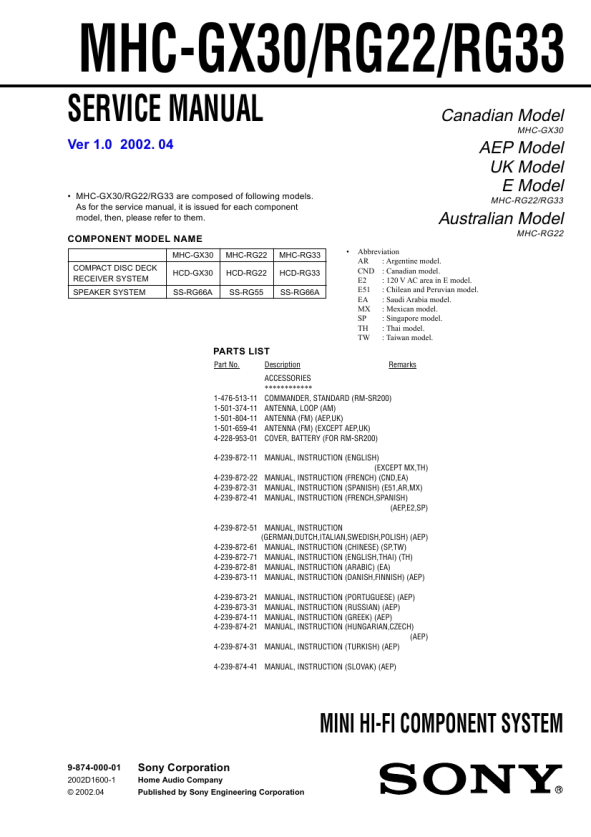

MHC-GX30/RG22/RG33
SERVICE MANUAL
Ver 1.0 2002. 04
� MHC-GX30/RG22/RG33 are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

Canadian Model

MHC-GX30

AEP Model UK Model E Model
MHC-RG22/RG33

Australian Model
MHC-RG22
� Abbreviation AR : Argentine model. CND : Canadian model. E2 : 120 V AC area in E model. E51 : Chilean and Peruvian model. EA : Saudi Arabia model. MX : Mexican model. SP : Singapore model. TH : Thai model. TW : Taiwan model. Remarks

COMPONENT MODEL NAME
MHC-GX30 COMPACT DISC DECK RECEIVER SYSTEM SPEAKER SYSTEM HCD-GX30 SS-RG66A MHC-RG22 HCD-RG22 SS-RG55 MHC-RG33 HCD-RG33 SS-RG66A

PARTS LIST
Part No. Description ACCESSORIES ************ COMMANDER, STANDARD (RM-SR200) ANTENNA, LOOP (AM) ANTENNA (FM) (AEP,UK) ANTENNA (FM) (EXCEPT AEP,UK) COVER, BATTERY (FOR RM-SR200)

1-476-513-11 1-501-374-11 1-501-804-11 1-501-659-41 4-228-953-01

4-239-872-11 MANUAL, INSTRUCTION (ENGLISH) (EXCEPT MX,TH) 4-239-872-22 MANUAL, INSTRUCTION (FRENCH) (CND,EA) 4-239-872-31 MANUAL, INSTRUCTION (SPANISH) (E51,AR,MX) 4-239-872-41 MANUAL, INSTRUCTION (FRENCH,SPANISH) (AEP,E2,SP) 4-239-872-51 MANUAL, INSTRUCTION (GERMAN,DUTCH,ITALIAN,SWEDISH,POLISH) (AEP) 4-239-872-61 MANUAL, INSTRUCTION (CHINESE) (SP,TW) 4-239-872-71 MANUAL, INSTRUCTION (ENGLISH,THAI) (TH) 4-239-872-81 MANUAL, INSTRUCTION (ARABIC) (EA) 4-239-873-11 MANUAL, INSTRUCTION (DANISH,FINNISH) (AEP) MANUAL, INSTRUCTION (PORTUGUESE) (AEP) MANUAL, INSTRUCTION (RUSSIAN) (AEP) MANUAL, INSTRUCTION (GREEK) (AEP) MANUAL, INSTRUCTION (HUNGARIAN,CZECH) (AEP) 4-239-874-31 MANUAL, INSTRUCTION (TURKISH) (AEP) 4-239-874-41 MANUAL, INSTRUCTION (SLOVAK) (AEP) 4-239-873-21 4-239-873-31 4-239-874-11 4-239-874-21

MINI HI-FI COMPONENT SYSTEM
9-874-000-01
2002D1600-1 © 2002.04

Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
