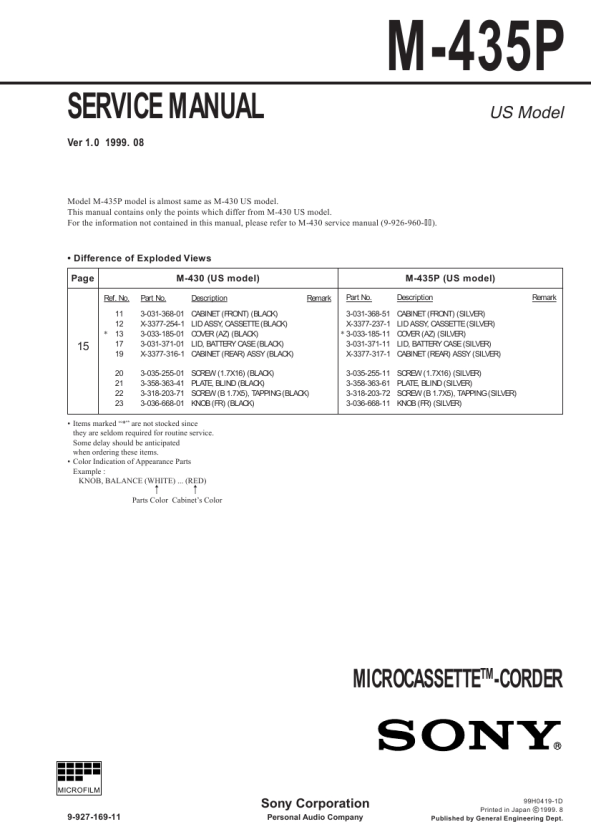

M-435P
SERVICE MANUAL
Ver 1.0 1999. 08
Model M-435P model is almost same as M-430 US model. This manual contains only the points which differ from M-430 US model. For the information not contained in this manual, please refer to M-430 service manual (9-926-960-�).
US Model
� Difference of Exploded Views Page
Ref. No. 11 12 * 13 17 19 20 21 22 23 Part No. 3-031-368-01 X-3377-254-1 3-033-185-01 3-031-371-01 X-3377-316-1 3-035-255-01 3-358-363-41 3-318-203-71 3-036-668-01
M-430 (US model)
Description CABINET (FRONT) (BLACK) LID ASSY, CASSETTE (BLACK) COVER (AZ) (BLACK) LID, BATTERY CASE (BLACK) CABINET (REAR) ASSY (BLACK) SCREW (1.7X16) (BLACK) PLATE, BLIND (BLACK) SCREW (B 1.7X5), TAPPING (BLACK) KNOB (FR) (BLACK) Remark Part No. 3-031-368-51 X-3377-237-1 * 3-033-185-11 3-031-371-11 X-3377-317-1 3-035-255-11 3-358-363-61 3-318-203-72 3-036-668-11
M-435P (US model)
Description CABINET (FRONT) (SILVER) LID ASSY, CASSETTE (SILVER) COVER (AZ) (SILVER) LID, BATTERY CASE (SILVER) CABINET (REAR) ASSY (SILVER) SCREW (1.7X16) (SILVER) PLATE, BLIND (SILVER) SCREW (B 1.7X5), TAPPING (SILVER) KNOB (FR) (SILVER) Remark
15
� Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet�s Color N N
MICROCASSETTETM-CORDER
MICROFILM
Sony Corporation
9-927-169-11
Personal Audio Company
99H0419-1D Printed in Japan C1999. 8 Published by General Engineering Dept.
|
|
|
> |
|
