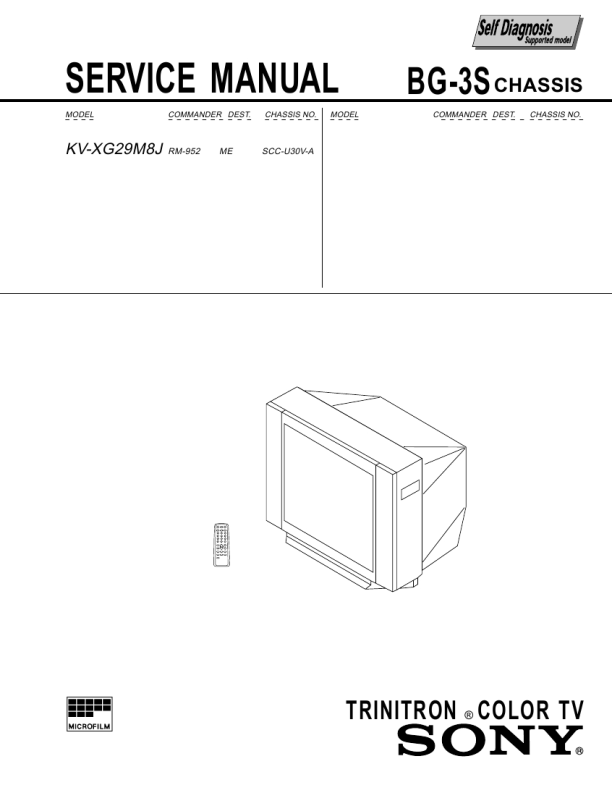

SONY KVXG29M8J
Manual de Servicio

KV-XG29M8J

� REMOVAL OF ANODE-CAP
NOTE : After removing the anode, short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon paint on the CRT.

RM-952

� REMOVING PROCEDURES
a

a

1 Turn up one side of the rubber cap in the direction indicated by the arrow a.

b b

2 Using a thumb pull up the rubber cap firmly in the direction indicated by the arrow b.
c

22 �

Anode button

3 When one side of the rubber cap is separated from the anode button, the anode-cap can be removed by turning up the rubber cap and pulling it up in the direction of the arrow c.

�

HOW TO HANDLE AN ANODE-CAP

1 Do not damage the surface of anode-caps with sharp shaped objects. 2 Do not press the rubber too hard so as not to damage the inside of anode-cap. A metal fitting called the shatter-hook terminal is built into the rubber. 3 Do not turn the foot of rubber over too hard. The shatter-hook terminal will stick out or damage the rubber.
