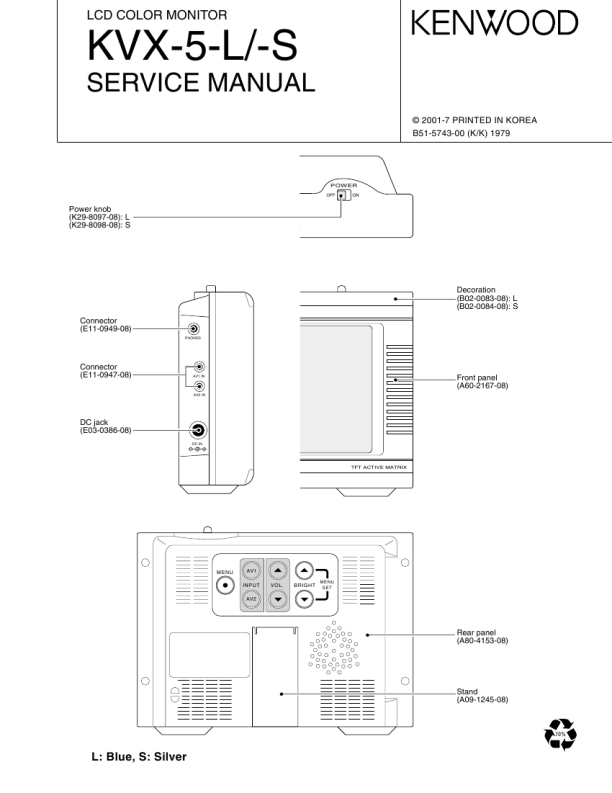

KVX-5-L/-S
CONTENTS / ACCESSORIES
Contents
CONTENTS / ACCESSORIES ...................................2 DISASSEMBLY FOR REPAIR....................................3 ADJUSTMENT ............................................................4 PC BOARD .................................................................5 SCHEMATIC DIAGRAM .............................................7 EXPLODED VIEW ......................................................9 PARTS LIST..............................................................10 PARTS DESCRIPTIONS ..........................................13 SPECIFICATIONS .......................................Back cover
Accessories
AC adaptor (1) (W08-0687-08): T (W08-0688-08): E AV cable (1) (E30-7241-08) Cushion (2) (J39-1039-08)
Troubleshooting Problems
If the system does not work as you expect, perform the following checks before contacting Customer Support. Problem No image and no sound � � � � � No image, or black or white screen No Sound Action to be taken Check the AC adaptor for proper connection. Check that the POWER switch is turned on. Check that the brightness and volume are minimized or the system is put in mute state. Check the selected A V input (AV1 or AV2) for connection to A V equipment. Check for reception of audio/video signals fr om AV equipment.
No image and no sound ( NO SIGNAL appears)
� Check the brightness for maximum or minimum. � Check the sound volume for minimum or check the system for being put in mute state. � Check headphones for being plugged into the system. � Check for reception of radio interference from other equipment, etc. (T urn of f the power of other equipment.)
� � � � �
Poor-quality image displayed Image doubly displayed Image fading Image swaying Stripes and patterns
Inappropriate color or light color Dark screen
Dark screen in the initial stage
� Check COLOR, TINT and PICTURE for proper , adjustment. � Check the direction of the crystal liquid panel for proper adjustment. � Check the brightness for proper adjustment. � When the temperatur e of the system is low , the screen becomes darker than usual just after the power is turned on because of the characteristic of the liquid cr ystal panel. Wait for a while until the temperature goes up. The screen will get light as usual.
2
If this product interferes with radio reception during use, place it far enough away from the radio to eliminate the interference.
|
|
|
> |
|
