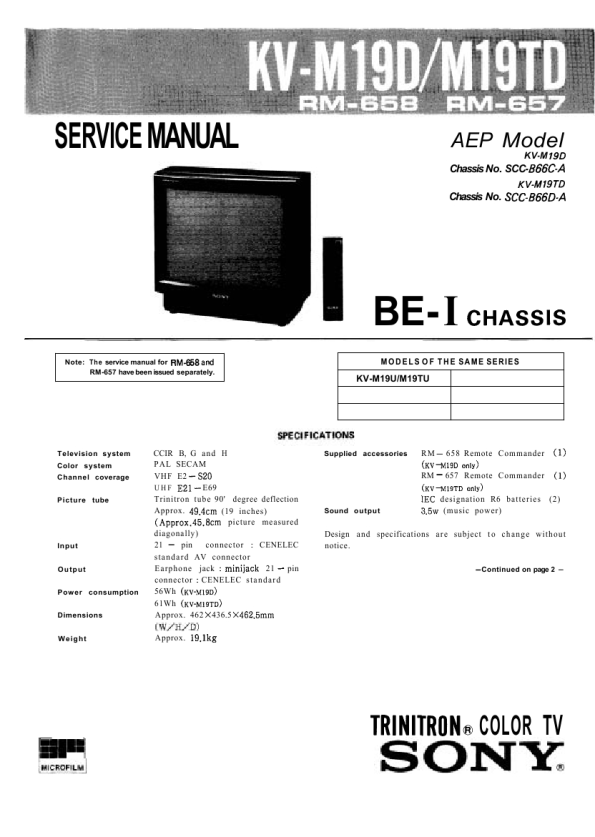

BE- I CHASSIS
Note: The service manual for RM-668and RM-657 have been issued separately.
M O D E L S O F T H E SAME SERIES
KV-M19U/M19TU
Television system Color system Channel coverage Picture tube
Input Output Power consumption Dimensions Weight
CCIR B, G and H PAL SECAM VHF E2 -S20 U H F E21- E69 Trinitron tube 90' degree deflection Approx. 49.4cm (19 inches) (Approx.45.8cm picture measured diagonally) 21 - pin connector : CENELEC standard AV connector Earphone jack : minijack 21 pin connector : CENELEC standard 56Wh (KV-MISD) 61Wh (KV-MISTD) Approx. 462 X 436.5 X 462.5mm (W/H/D) Approx. 19.lkg
