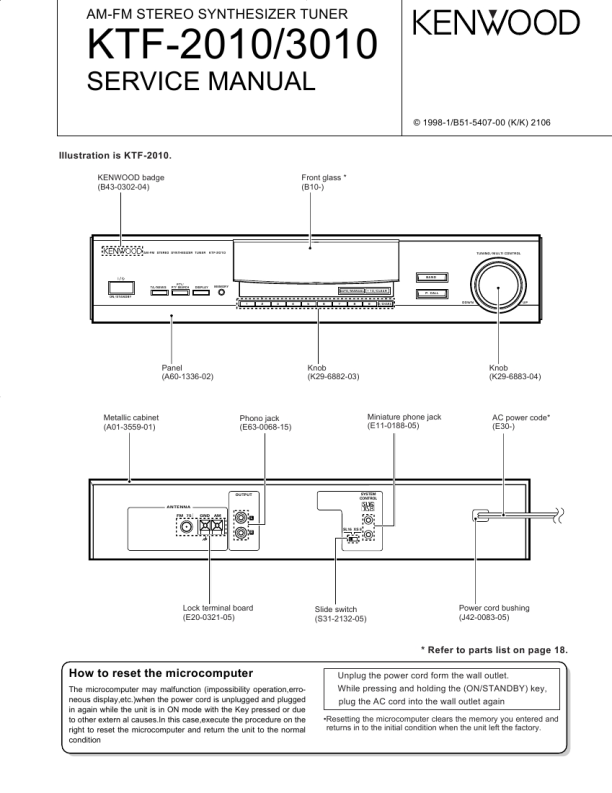

KTF-2010/3010
CIRCUIT DESCRIPTION
1-3. Initial settings a) Setting procedure
� If the unit has a back-up function, hold down the POWER key and plug the AC power cord. � During the test mode with the main unit keys and the test mode with serial communications, the initial settings can be obtained by unplug and plug the AC power cord. RDS DISPLAY MODE TA / NEWS / TA, NEWS ACTIVE RECEPTION ANT A/B IF BAND RF ATT SERIAL : FREQUENCY DISPLAY MODE : OFF : OFF :A : WIDE : OFF : XS8
b) Description
� All function (including test mode) will be initialized. � The manufacturer's memory is always set in the preset CH and area.
1-6. Back-up status
POWER ON/OFF TUNING MODE PRESET MEMORY 1~40ch LAST BAND LAST P.ch LAST FM FREQUENCY LAST AM (MW) FREQUENCY RDS AUTO MEMORY LIST LAST LW FREQUENCY ACTIVE RECEPTION ANT A/B** IF BAND** RF ATT** TA / NEWS / TA, NEWS* PS STATION NAME* * : E, T type ** : KTF-3010
1-4. POWER ON startup
� Since the unit has a POWER key, no setting is required.
1-5. Initial status
POWER ON/OFF TUNING MODE PRESET MEMORY LAST BAND FM LAST FREQUENCY AM.MW LAST FREQUENCY LW LAST FREQUENCY LAST P.ch : OFF : AUTO : TEST FREQUENCY : FM : OVERSEAS 87.5MHz /JAPAN 76.0MHz : CH SPACE 9K 531kHz : CH SPACE 10K 530kHz : 153kHz : [--ch]
1-7. 16-bit serial test code (C2XXH)
0 1 2 3 4 5 6 7 8 9 A B C D E F 9 0 1 2 3 4 5 6 7 Active reception OFF 8 Active reception ON 9 RF ATT OFF +10 RF ATT ON BAND FM IF WIDE BAND AM/MW BAND LW IF NARROW TUNING DOWN TUNING UP 8 POWER OFF POWER ON MUTE OFF MUTE ON AUTO STEREO MONO A MEMORY ..... F
PTY DISPLAY ATENNA A ATENNA B All LED goes OFF All LED goes ON All LED ON : OFF All LED ON :ON Initial setting TEST OFF TEST ON
HI BLEND
: KTF-3010 ONLY Note : Pls KT-2080/3080 service manual (B51-5128-00) on test frequency table and channel space table.
5
|
|
|
> |
|
