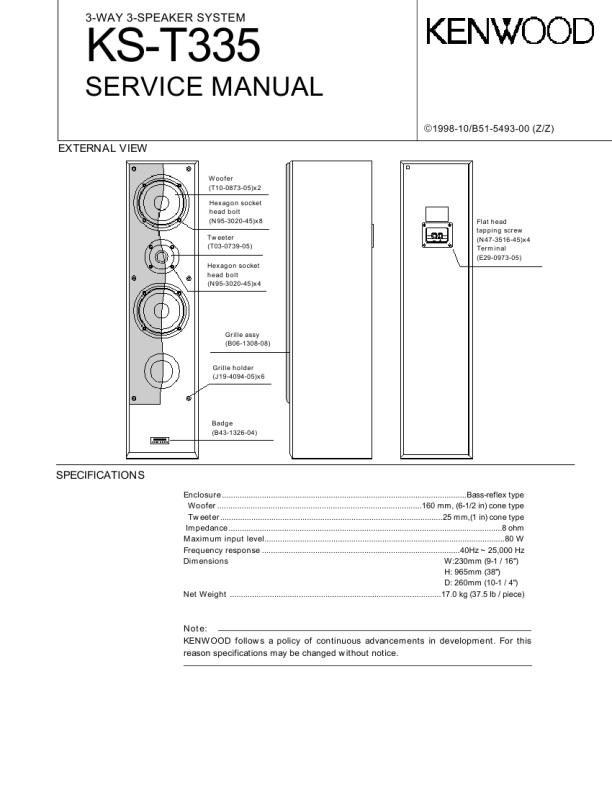

3-WAY 3-SPEAKER SYSTEM

KS-T335
SERVICE MANUAL
©1998-10/B51-5493-00 (Z/Z) EXTERNAL VIEW
Woofer (T10-0873-05)x2 Hexagon socket head bolt (N95-3020-45)x8 Tweeter (T03-0739-05) Hexagon socket head bolt (N95-3020-45)x4

Flat head tapping screw (N47-3516-45)x4 Terminal (E29-0973-05)

Grille assy (B06-1308-08) Grille holder (J19-4094-05)x6

Badge (B43-1326-04)

SPECIFICATIONS
Enclosure ..............................................................................................................Bass-reflex type Woofer ............................................................................................160 mm, (6-1/2 in) cone type Tweeter....................................................................................................25 mm,(1 in) cone type Impedance ...........................................................................................................................8 ohm Maximum input level............................................................................................................80 W Frequency response .........................................................................................40Hz ~ 25,000 Hz Dimensions W:230mm (9-1 / 16") H: 965mm (38") D: 260mm (10-1 / 4") Net Weight ...............................................................................................17.0 kg (37.5 lb / piece)

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
