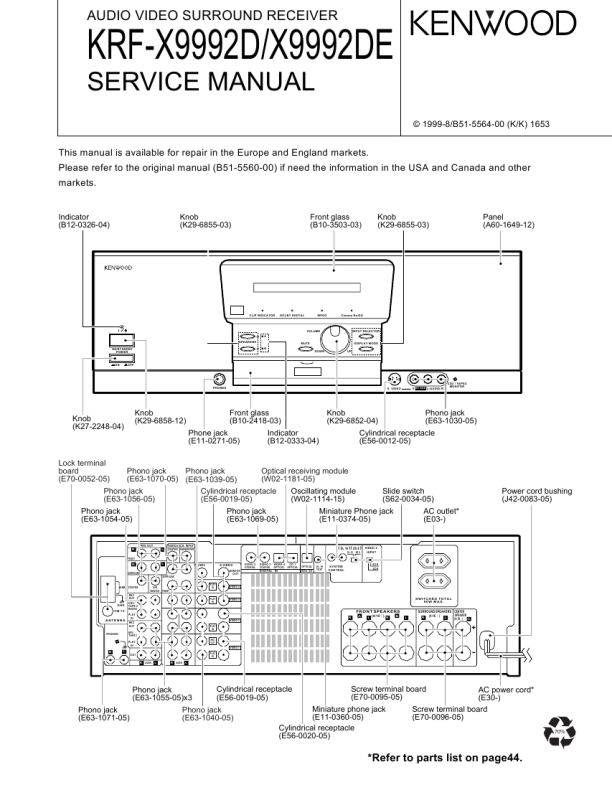

KRF-X9992D/X9992DE
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS.............. 2 ADJUSTMENT ............................................................ 3 PARTS DESCRIPTIONS ............................................ 4 PC BOARD ................................................................. 5 SCHEMATIC DIAGRAM ........................................... 13 EXPLODED VIEW .................................................... 43 PARTS LIST.............................................................. 44 SPECIFICATIONS .......................................Back cover
Accessories
Remote control unit (1) (A70-1290-05) AM loop antenna (1) (T90-0833-05) Loop antenna stand (1) (J19-3645-05) Batteries(R6/AA) (4) FM indoor antenna (1) (T90-0841-05)
(RC-R1007) Battery cover(A09-1130-08)
Cautions
How to reset the microcomputer
The microcomputer may malfunction (impossibility of operation, erroneous display, etc.) when the power cord is unplugged and plugged in again while the unit is in ON mode or due to other external causes. In this case, execute the procedure on the right to reset the microcomputer and return the unit to the normal condition. ÷ Resetting the microcomputer clears the memory you entered and returns it to the initial condition when the unit left the factory.
1 With the power cord plugged in, turn the POWER key to OFF. 2 While holding down the the POWER key. (ON/STANDBY) key, press
Memory backup function
Please note that the following items will be deleted from this unit�s memory if the power cord is disconnected from the AC outlet for approximately three days.
÷ The input selection is cleared and the �Tuner� input is selected. ÷ The volume setting is cleared and the volume is set to �-66 dB�. ÷ The receiving band setting is cleared and the �FM� band is selected. ÷ The frequency setting is cleared and 87.5 MHz is selected. ÷ The preset station memory is cleared. ÷ The surround setting is cleared and reset to the initial condition.
2
|
|
|
> |
|
