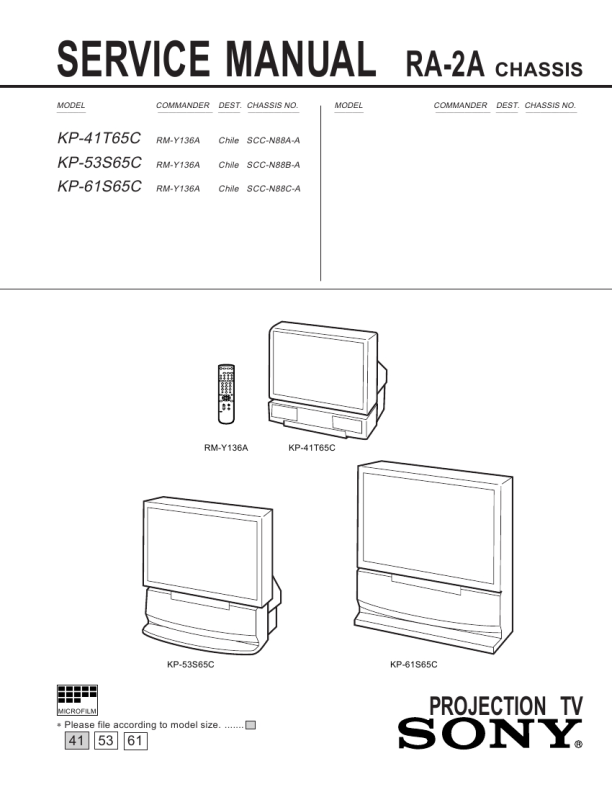

SONY KP41T65C
Manual de Servicio

SECTION 1 GENERAL

The operating instructions mentioned here partial abstracts from the Operating Instructions Manual. The page numbers of the Operating Instruction Manual remain as in the manual.

Getting Started

Welcome!

Precautions

Step 1: Installing the projection TV

Carrying your projection TV
p KP-41T65C/53S65C only

Be sure to grasp the areas indicated when carrying the

projection TV, and to use more than two people.
(Rear of projection TV)

Thank you for purchasing the Sony Color Rear Video Projection TV. Here are some of the features you will enjoy with your projection TV: � On-screen menus that let you set the picture quality, sound, and other settings. � Two tuner Picture-in-Picture (PIP) that allows you to watch another TV channel, video or cable image as a window picture. � Surround system that simulates the sound quality of a concert hall or movie theater. � SAVA SPEAKER option of the AUDIO menu that lets you take advantage of the Sony SAVA series speaker system�s surround sound and super woofer mode when you connect it to the projection TV.

This projection TV operates on extremely high voltage. To prevent fire or electric shock, please follow the precautions below. Safety � Operate the projectionis wider than the other for safety � One blade of the plug TV only on 120 V AC. purposes and will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer. � Should any liquid or solid object fall into the cabinet, unplug the projection TV and have it checked by qualified personnel before operating it further. � Unplug the projection TV from the wall outlet if you are not going to use it for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself. For details concerning safety precautions, see the supplied leaflet �IMPORTANT SAFEGUARDS.� Note on cleaning Clean the cabinet of the projection TV with a dry soft cloth. To remove dust from the screen, wipe it gently with a soft cloth using vertical strokes only. Stubborn stains may be removed with a cloth slightly dampened with solution of mild soap and warm water. Never use strong solvents such as thinner or benzine for cleaning. If the picture becomes dark after using the projection TV for a long period of time, it may be necessary to clean the inside of the projection TV. Consult qualified service personnel. Installing � To prevent internal heat build-up, do not block the ventilation openings. � Do not install the projection TV in a hot or humid place, or in a place subject to excessive dust or mechanical vibration. � Avoid operating the projection TV at temperatures below 5°C (41°F). � If the projection TV is transported directly from a cold to a warm location, or if the room temperature has changed suddenly, the picture may be blurred or show poor color. This is because moisture has condensed on the mirror or lenses inside. If this happens, let the moisture evaporate before using the projection TV. � To obtain the best picture, do not expose the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the projection TV in a room where the floor and walls are not of reflecting material. If necessary, cover them with dark carpeting or wall paper.

For the best picture quality, install the projection TV within the areas shown below.

Optimum viewing area (Horizontal)
m in. mi n. 1.5m 2.1m mi n. 2 .4m (ap 6 pro 1" x.

(ap 5 pr 3" ox.

(a 41 ppro " x .5f t.)

7f t.)

8f t.)

60°

60°

p KP-61S65C only

EN

� 4 �

Carry your projection TV by the casters.

About this manual

Preparing for your projection TV
Before you use your projection TV, adjust convergence. For the procedure, see Step 4: Setting up the projection TV automatically (AUTO SET UP) on page 14.

The instructions in this manual are for models KP-

41T65, KP-46C65, KP-48S65, KP-53S65, and KP-61S65. Before you start reading this manual, please check your model number, located at the rear of the projection TV. Model KP-53S65 is used for illustration purposes in this manual. Any differences in operation are clearly indicated in the text, for example �KP-61T65 only.� The differences in specifications are indicated in the text. Instructions in this manual are based on use of the remote control. You can also use the controls on the projection TV if they have the same name as those on the remote control.

Optimum viewing area (Vertical)
min . 2.4m (a 61"pprox. 8 min ft.) . 2.1m (app 53 rox. " 7 ft. ) min in.. 1 1 .5m 5 t 5 4.1"m((5ff.t.) ) "

20° 20°

4 -EN

Getting Started

5 -EN
