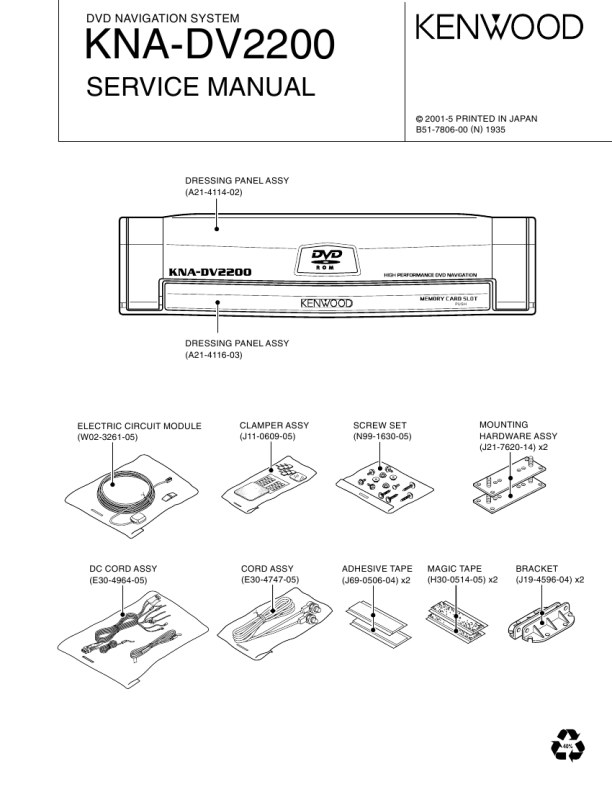

KENWOOD KNADV2200
Manual de Servicio

KNA-DV2200
TEST MODE
Preparation: Connect the DVD Navigation to the TV monitor of the KENWOOD touch panel.

2. Ending the test mode
Reset the system by pressing the reset button on the front panel.

1. How to enter the test mode
(1) Touch upon the �Menu� on the TV monitor and switch to the Navigation Menu screen.

3. Items on the test mode
By doing the following, various information can be obtained from the Diagnosis Menu.

3-1. GPS Information
The GPS reception status can be confirmed by touching on the �GPS Information�. When confirming on the GPS reception status, put up the GPS antenna at a location where nothing blocks GPS recepN

Menu

(2) Touch the Area 1 through Area 3 on the Navigation Menu screen in the following order: 1�2�1�2�3.

tion. If the almanac data is lost due to conducting repair work and the like, the data can be rewritten by receiving GPS information with the GPS antenna, while the vehicle is stationary for about 20 minutes.

GPS INFORMATION
NAVIGATION MENU
Destination Entry Route Options Navigation Set Up Language Selection Cancel Guidance Options Stored Locations User Setting

Cancel

3

Elv

_ _� _ _� _ _� _ _�

/ _ _ _� / _ _ _� / _ _ _� / _ _ _�

Ensure noting is blocking GPS reception Azm Level Status Elv Azm Level Status
_ _ _ _ _ _� _ _� _ _� _ _� / _ _ _� / _ _ _� / _ _ _� / _ _ _� _ _ _ _ -

Measurement Status : -

Date ( GMT ) : _ _ / _ _ / _ _ _ _ _ _ : _ _ Latitude Longitude N : _ _� _ _. _ E: _ _ _� _ _. _

1

2
(1) Elv./Azm: Displays current position of GPS in elevation and azimuthally projected direction. (2) Level: The reception level from each satellite is displayed in values (C/N). (3) Status: Displays whether receiving or in use. When in use, it is used for measurements. (4) Measurement Status: Displays � �/NG/2D/3D. (5) Date: Displays current time and date. (6) Position: Displays longitude and latitude of the current position.

(3) Switching the screen display on the Diagnosis Menu.

DIAGNOSIS MENU
GPS Information Vehicle Signal

Cancel Parts Information NAV RGB Check
