KENWOOD KGP2A
Manual de Servicio


¡Twitee acerca de este producto y obtenga $1.00 de crédito en la tienda para uso!
  • Contiene diagramas del circuito
  • Descargable
  • Formato PDF
  • Manual completo
  • Idiomas: English
Precio: $4.99

Descripción del KENWOOD KGP2A Manual de Servicio

Manual de servicio completo en formato digital (archivo PDF). Los manuales de servicio por lo general contienen diagramas de circuitos, tarjetas de circuitos impresos, consejos para reparación, diagramas de cableado, diagramas de bloque y lista de refacciones. El Manual de Servicio (a veces llamado Manual de Reparación) es usado principalmente por los técnicos.

Si tan solo quiere saber cómo utilizar su televisión, reproductor de vídeo, reproductor de mp3, etc. Quizá lo que necesita es el Manual del Propietario. Después de colocar la orden le enviaremos las instrucciones de descarga a su dirección de e-mail.

The manual is available in languages: English

Not yet ready
You must purchase it first

Opiniones de los clientes
No hay comentarios de productos.

TEXT_PDF_SNIPPET

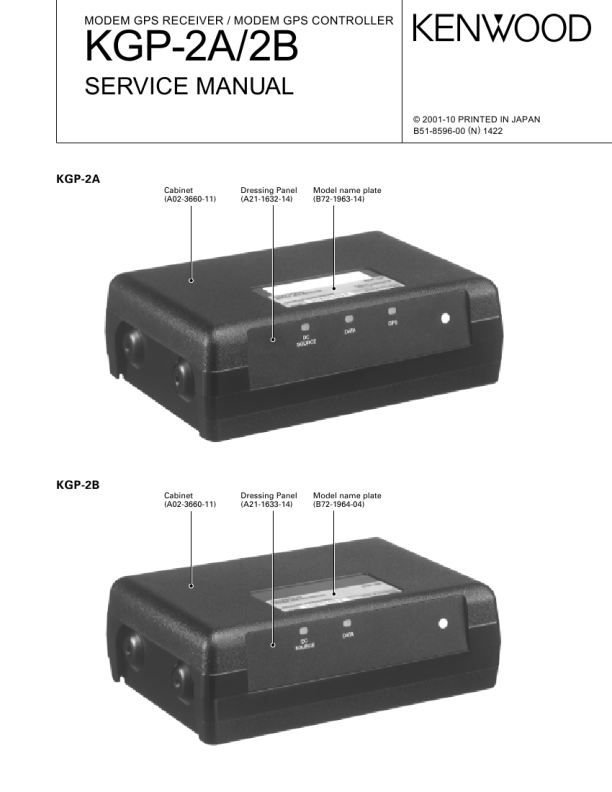

KGP-2A/2B
DISASSEMBLY FOR REPAIR / ADJUSTMENT
Remove the Case from the Chassis
1. Remove 4 screws ( 1 ). 2. Hold the KGP-2A/2B upside down as shown in Figure 2, then lift the chassis upward by pulling the tabs on its side ( 2 ). Also, lift the chassis on the other side in same manner. 3. Grab the chassis from the top and lift it upward ( 3 ), then slide and pull the chassis slightly ( 4 ). Lift the chassis upward ( 5 ) to remove it from the case.
1 1

ADJUSTMENT
Front Panel
DC SOURCE LED GPS LED (KGP-2A only) DATA LED MODE SW

DC SOURCE

DATA

GPS

Start the Programming Menu Mode
Press and hold the MODE SW key for more than 2 seconds. �DC SOURCE� LED blinks and then the KGP-2A/2B enters the programming menu mode.

Fig. 1
2

Note : If the KGP-2A/2B does not receive any programming commands from a PC within 30 seconds after the �DC SOURCE� LED starts blinking. It returns normal operation (User mode). If you press MODE SW key while the �DC SOURCE� LED is blinking, the KGP-2A/2B returns to User mode.

Updating the Firmware
1) Connect the transceiver and KGP-2A/2B as shown in Figure 2 on page 4. 2) Double-click the �Fpro.exe� file (Ver. 3.01 or later) in the folder where the KPG-73D is installed. 3) After the program starts, click the �Open a file� icon [ ], then select the new firmware data file. 4) Configure the KPG-2A/2B to enter the Programming menu mode, then, click [Write] on the Fpro screen to start revising the firmware. (The Fpro program first erases the firmware file on the KGP-2A/2B, then writes the new firmware file.) � While erasing the firmware, the �DC SOURCE� LED blinks green and the �DATA� LED lights orange. � While writing the firmware, the �DC SOURCE� and �DATA� LEDs blink green. When the firmware is successfully revised, only the �DC SOURCE� LED blinks green. � When an error occurrs, the �DC SOURCE� LED blinks green and the �DATA� LED blinks red. In this case, switch the KGP-2A/2B OFF, then turn it ON again. The �DC SOURCE� LED blinks green and the �DATA� LED lights orange. Click [Write] on the Fpro screen to restart revising the firmware. 5) Click �OK� when the confirmation dialog box appears. Select [Exit] to exit the program. 6) Turn the KGP-2A/2B OFF and then back ON to return to User mode. �

Fig. 2

5 3 4

Fig. 3 6
