KENWOOD KGC4042A

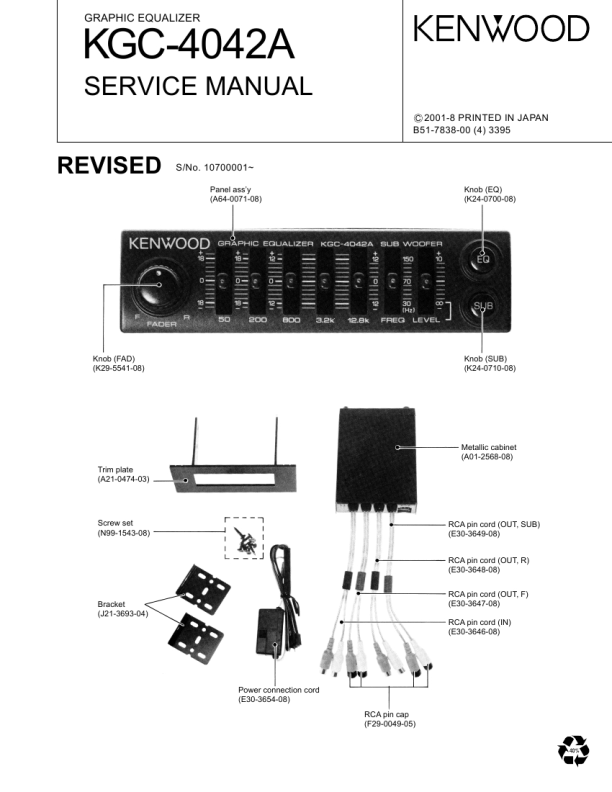

Manual de Servicio

KGC-4042A
Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohane Parts No. werden nicht geliefert. Ref. No. d e
D1 ,2 D3 D4 -6 D7 IC1 IC2 ,3 IC4 IC5 Q1
AN dw

�New Parts

PARTS LIST
Parts No.
DSK10C-ET1 MTZJ4.3A 1SS133 MTZJ5.1B NJM4580MD NJM2068MD NJM2060M UPC4570G2 2SC4640(T,U)

Description
DIODE ZENER DIODE DIODE ZENER DIODE IC IC(OP AMP) ANALOGUE IC ANALOGUE IC TRANSISTOR

Destination

Ref. No. d e
Q2 Q3 Q4 Q5 Q6 ,7 Q8 -12 Q201-205 Q251-255

AN dw

Parts No.
2SC1741A(R) 2SC2060 DTA114ES DTC114ES 2SA1782(T,U) 2SC3327-A 2SC2712(GR) 2SC2712(GR)

Description
TRANSISTOR TRANSISTOR TRANSISTOR TRANSISTOR TRANSISTOR TRANSISTOR TRANSISTOR TRANSISTOR
indicates safety critical components.

Destination

E: Europe K:North America M: Other Areas W: Without Europe

SPECIFICATIONS
Specifications subject to change without notice.

Audio Section
Input Impedance .............................................................. 10k� Output Impedance .......................................................... 600� Signal to Noise Ratio ..................................................... 100dB T.H.D. ............................................................................. 0.01% Frequency Response (�3dB) ............................. 10Hz~60kHz Gain ................................................................................... 0dB

Equalizer Section
Equalizer Center Frequency .................. 50Hz, 200Hz, 800Hz, 3.2kHz, 12.8kHz Equalization Range .................... �18~+18dB (500Hz, 200Hz) �12~+12dB (800Hz, 3.2kHz, 12.8kHz) Sub-woofer Cut-off Frequency ............... 30~150Hz (variable) Sub-woofer Output Gain ......................................... ��~+10dB Sub-woofer Cut-off Slope .......................................... 12dB/oct

General
Operating Voltage ........................................... 14.4V (11~16V) Current Consumption (MAX) .......................................... 0.18A Dimensions (WxHxD) ..... 89�25�130 mm (3�1/2�1�5�1/8 in) Weight ................................................................ 0.4 kg (0.9 lb)

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
