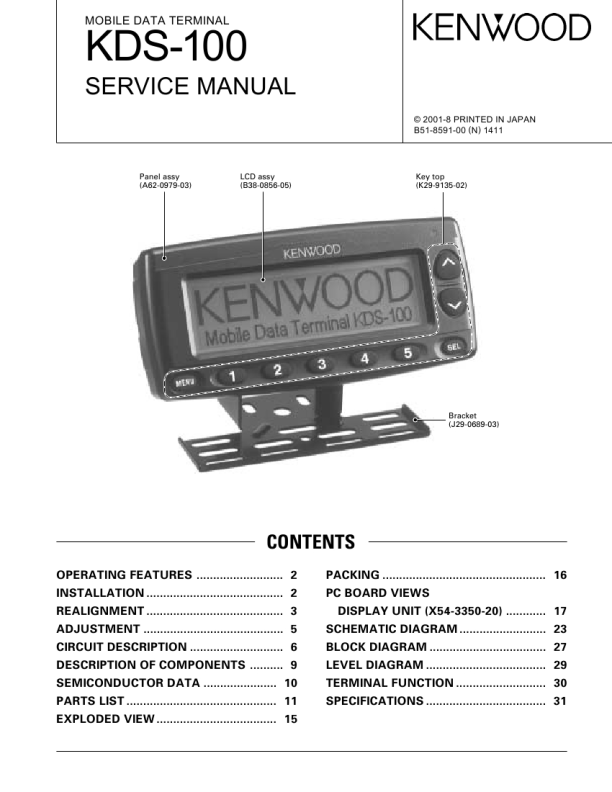

KDS-100
OPERATING FEATURES / INSTALLATION
Front panel
1 2
TK-780/880/980/981 Series (TK-*80 Series)
s Installing the KCT-34 in the Transceiver
1. 2. 3. 4.
6 7
Remove the upper cover from the transceiver. Lift the DC cord bushing ( 1 ) from the chassis. Remove the pad as shown in the Figure 1 ( 2 ). Insert the KCT-34 cable ( 3 ) into the chassis ( 4 ). The wire harness band ( 5 ) must be inside the chassis. 5. Replace the DC cord bushing ( 6 ). 6. Connect the KCT-34 to the TX-RX unit (A/2) as shown in Figure 2 ( 7 ).
Connector Wire Color Brown NC NC Orange Gray NC Yellow Blue Pin No. Connector 4 � � 5 10 � 6 8 B-1 B-2 B-3 C-1 C-2 C-3 D-1 D-2 D-3 Wire Color NC White Green Purple Light blue Light green NC Black Red Pin No. � 11 7 9 14 15 � 3 1
3
4
5
A-1 A-2 A-3 A-4 A-5 A-6 A-7 A-8
1
Display
Messages appear on this 240 x 64 dot LCD.
2
LED Indicator (default settings)
Lights red while �talking� to the mobile unit. Lights green while �listening� to the mobile unit. Flashes orange when a message is waiting.
3
MENU key
Press to enter the Menu mode, in order to select your desired menu.
4
Keys 1 ~ 5
Press these function keys to perform the functions described in the status bar on the display, directly above the keys.
5
SEL (Select) key
Press to select the displayed item.
