KENWOOD KDCC56FM
Manual de Servicio

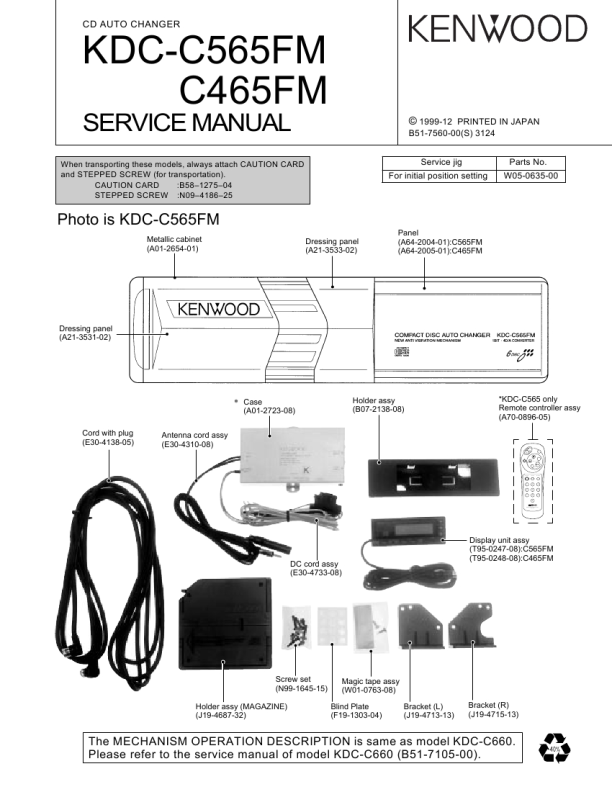

KDC-C565FM/C465FM
SPECIFICATIONS
Specifications subject to change without notice. Disc section Laser Diode ....................................................................... Digital Filter ....................................................................... D/A Converter ................................................................... Spindle Speed ................................................................... Wow & Flutter .................................................................... Modulating Frequency ....................................................... General Operating Voltage ............................................................. Current Consumption ........................................................ Operating Temperature ..................................................... Size (CD Changer) ............................................................ (Display Unit) ............................................................. (Hide=Away Unit) ...................................................... Weight (Changer Main Unit) ............................................. (Display Unit) ........................................................ (Hide-Away Unit) ..................................................

GaAIAs (λ=780 nm) 8 Times Over Sampling 1 Bit 500 ~ 200 rpm (CLV) Below Measurable Limit 87.7 ~ 89.9 MHz (200 kHz step)

14.4 V (11 ~ 16 V) 1.4 A -10 ~ 50 C� 250W � 64H � 176D mm (9-13/16W � 2-1/2H � 6-13/16D in.) 105W � 40H � 18D mm (4-1/8W � 1-9/16H � 11/16D in.) 150W � 30H � 80D mm (5-7/8W � 1-3/16H � 3-1/8D in.) 1.8 kg (4.0 LBS) 0.125 kg (0.28 LBS) 0.600 kg (1.3 LBS)
