KENWOOD KDC9015

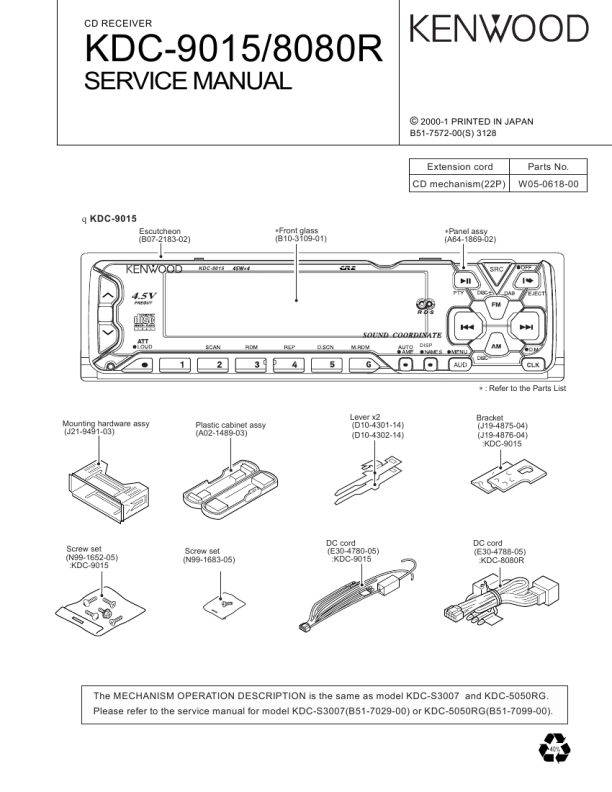

Manual de Servicio

KDC-9015/8080R
SPECIFICATIONS
KDC-9015
FM Section
Frequency Range .............................. 87.9MHz~107.9MHz (Frequency Step) (200kHz) Channel Space selection ................... 50k/200kHz Usable Sensitivity(S/N:30dB) ............ 9.3dBf(0.8µV/75�) Quieting Sensitivity(S/N:50dB) .......... 15.2dBf (1.6µV/75�) Frequency Response(±3.0dB) .......... 30Hz~15kHz S/N ..................................................... 70dB(MONO) Selectivity .......................................... �80dB(±400kHz) Stereo Separation .............................. 40dB(1kHz)

KDC-8080R
FM Section
Frequency Range .............................. 87.5MHz~108.0MHz (Frequency Step) (50kHz) Usable Sensitivity(S/N:26dB) ............ 0.7µV/75� Quieting Sensitivity(S/N:46dB) .......... 1.6µV/75� Frequency Response(±3.0dB) .......... 30Hz~15kHz S/N ..................................................... 65dB(MONO) Selectivity(DIN) .................................. �80dB(±400kHz) Stereo Separation .............................. 35dB(1kHz)

MW (AM) Section
Frequency Range .............................. 531kHz~1611kHz (Frequency Step) (9kHz) Usable Sensitivity(S/N:20dB) ............ 25µV

AM Section
Frequency Range .............................. 530kHz~1700kHz (Frequency Step) (10kHz) Channel Space selection 9k/10kHz Usable Sensitivity(S/N:20dB) ............ 28dBµ(25µV)

LW Section
Frequency Range .............................. 153kHz~281kHz Usable Sensitivity(S/N:20dB) ............ 45µV

CD Section
Laser Diode ....................................... GaAIAs(λ=780nm) Digital Filter(D/A) ............................... 8 Times Over Sampling D/A Converter .................................... 1Bit Spindle Speed ................................... 500~200(CLV) Wow & Flutter .................................... Below Measurable Limit Frequency Response ........................ 10~20kHz(±1dB) Total Harmonic Distortion .................. 0.01%(1kHz) S/N Ratio ........................................... 93dB(1kHz) Dynamic Range ................................. 93dB Channel Separation ........................... 85dB Preout Level (mV) /Load-Unbalanced ....... 4500mV/10k�(CD/CD-CH) Preout Impedance ................................ 80�

CD Section
Laser Diode ....................................... GaAIAs(λ=780nm) Digital Filter(D/A) ............................... 8 Times Over Sampling D/A Converter .................................... 1Bit Spindle Speed ................................... 500~200(CLV) Wow & Flutter .................................... Below Measurable Limit Frequency Response ........................ 10~20kHz(±1dB) Total Harmonic Distortion .................. 0.01%(1kHz) S/N Ratio ........................................... 93dB(1kHz) Dynamic Range ................................. 93dB Channel Separation ........................... 85dB Preout Level (mV) /Load-Unbalanced ....... 1800mV/10k�(CD/CD-CH) Preout Impedance ................................ �600�

AMPLIFIER Section
Maximum Power ................................ 45W�4 Full Bandwidth Power(at less than 1%THD) .... 22W�4

AMPLIFIER Section
PWR(MAX) ........................................ 45W�4 PWR DIN45324,+B=14.4V ................ 28W�4

TONE Section
Bass ................................................... 100Hz±10dB Treble ................................................ 10kHz±10dB

TONE Section
Bass ................................................... 100Hz±10dB Treble ................................................ 10kHz±10dB

General
Operating Voltage .............................. 14.4V (11~16V allowable) Current Consumption ........................ 10A Installation Size (W) ........................... 182(mm) 7-3/16(in) (H) ........................... 53(mm) 2-1/16(in) (D) ........................... 162(mm) 6-3/8(in) Weight ............................................... 4.2lbs(1.9kg)

General
Operating Voltage .............................. 14.4V (11~16V allowable) Current Consumption ........................ 10A Installation Size (W) ........................... 182(mm) 7-3/16(in) (H) ........................... 53(mm) 2-1/16(in) (D) ........................... 162(mm) 6-3/8(in) Weight ............................................... 4.2lbs(1.9kg)

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
