HVL-RLA

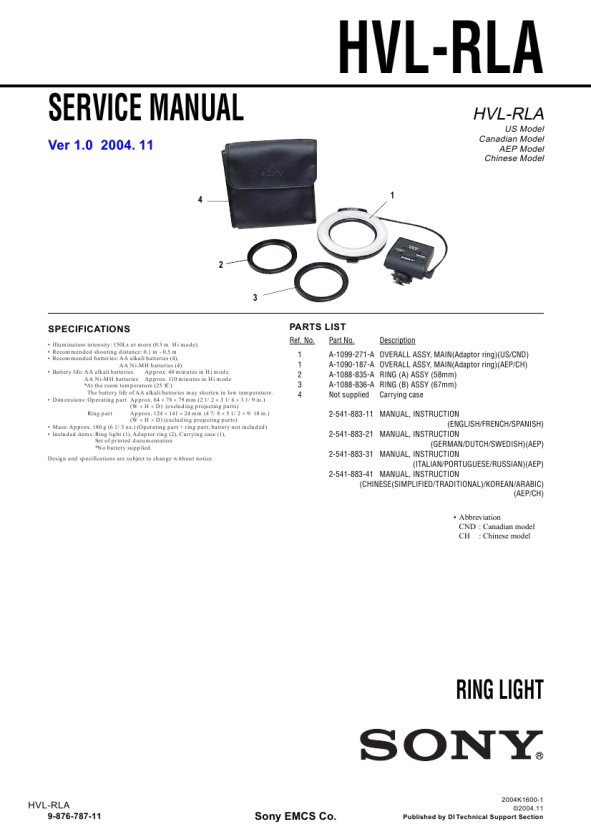

SERVICE MANUAL
Ver 1.0 2004. 11
4 1
HVL-RLA
US Model Canadian Model AEP Model Chinese Model
2 3 SPECIFICATIONS
� Illumination intensity: 150Lx or more (0.3 m Hi mode) � Recommended shooting distance: 0.1 m - 0.5 m � Recommended batteries: AA alkali batteries (4), AA Ni-MH batteries (4) � Battery life: AA alkali batteries Approx. 40 minutes in Hi mode AA Ni-MH batteries Approx. 110 minutes in Hi mode *At the room temperature (25 °C) The battery life of AA alkali batteries may shorten in low temperature. � Dimensions: Operating part Approx. 64 � 78 � 79 mm (2 1/2 � 3 1/6 � 3 1/9 in.) (W � H � D) (excluding projecting parts) Ring part Approx. 124 � 141 � 24 mm (4 7/8 � 5 1/2 � 9/10 in.) (W � H � D) (excluding projecting parts) � Mass: Approx. 180 g (6 1/3 oz.) (Operating part + ring part; battery not included) � Included items: Ring light (1), Adaptor ring (2), Carrying case (1), Set of printed documentation *No battery supplied. Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 1 1 2 3 4 Part No. Description A-1099-271-A OVERALL ASSY, MAIN(Adaptor ring)(US/CND) A-1090-187-A OVERALL ASSY, MAIN(Adaptor ring)(AEP/CH) A-1088-835-A RING (A) ASSY (58mm) A-1088-836-A RING (B) ASSY (67mm) Not supplied Carrying case 2-541-883-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/SPANISH) 2-541-883-21 MANUAL, INSTRUCTION (GERMAN/DUTCH/SWEDISH)(AEP) 2-541-883-31 MANUAL, INSTRUCTION (ITALIAN/PORTUGUESE/RUSSIAN)(AEP) 2-541-883-41 MANUAL, INSTRUCTION (CHINESE(SIMPLIFIED/TRADITIONAL)/KOREAN/ARABIC) (AEP/CH) � Abbreviation CND : Canadian model CH : Chinese model
RING LIGHT
HVL-RLA
9-876-787-11
2004K1600-1 ©2004.11
Sony EMCS Co.
Published by DI Technical Support Section
|
|
|
> |
|
