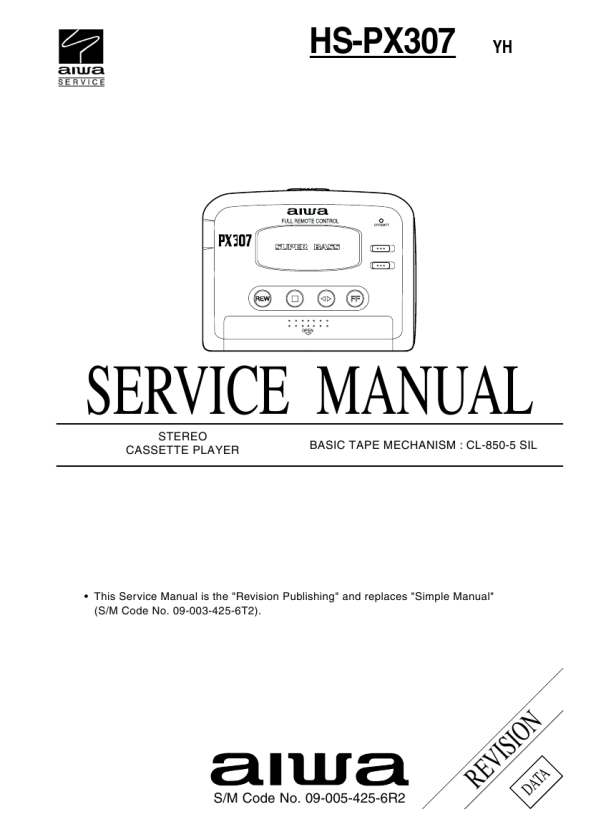

AIWA HS-PX307
Manual de Servicio

TEST MODE
This model has a test mode function in the disassembled condition.

Screw

TP701 Screw

TEST

1. How to use the test mode: � Short the test land in the MAIN C.B. � Auto-stop function is not detected by micro-computer while test mode is active. Note: Make sure that the test land is opened after the test mode is de-activated. (Auto-stop function is not available with shorted land condition.) 2. How to disassemble the circuit board. � Removes the soldering part in the MAIN C.B (with the � Removes two screws.

mark).
