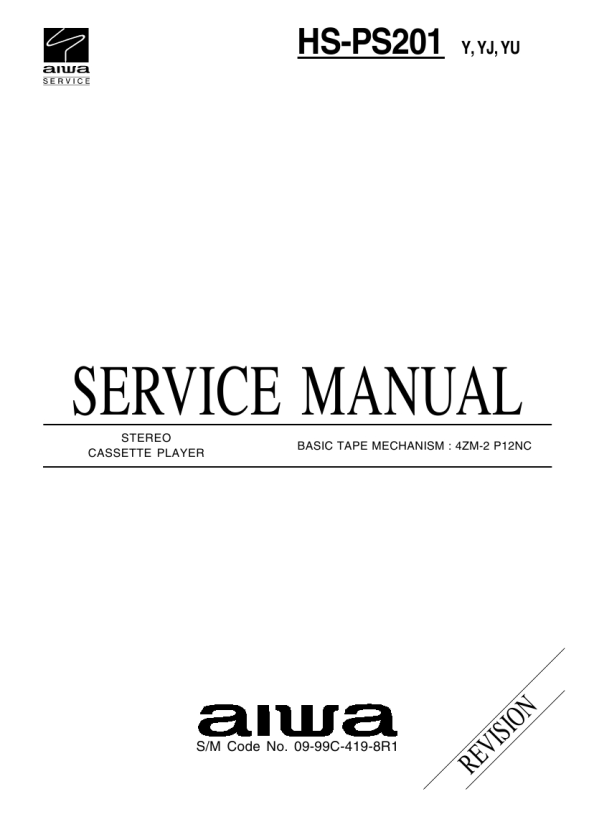

AIWA HSPS201
Manual de Servicio

ADJUSTMENT

MECHANICAL EXPLODED VIEW 1 / 1

A MAIN C.B
VOLUME

VR 1

PHONES SFR 51 J1

1

12

2

1. Tape Speed Adjustment Settings : � Test tape : TTA�100 (Tape center) � Test point : PHONES JACK (J1) � Adjustment location : SFR51 Method : Play back the test tape and adjust SFR51 so that the frequency is 3000Hz±10Hz.

2. Head Azimuth Adjustment Settings : � Test tape : � Test point : � Ajustment location: Method: TTA�300 PHONES JACK (J1) Head azimuth adjustment screw

Play back the test tape and adjust the screw so that the output becomes maximum and same phase.
