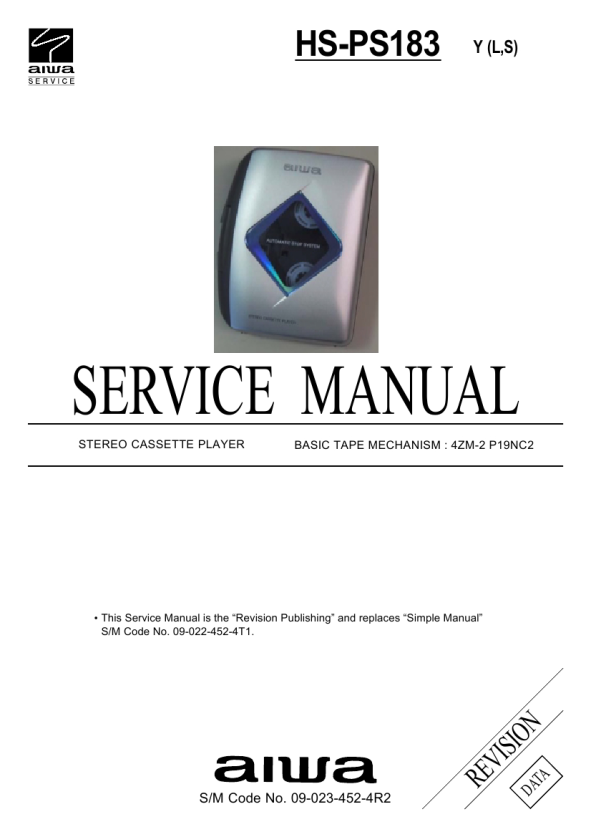

AIWA HSPS183
Manual de Servicio

ADJUSTMENT
1. Tape Speed Adjustment Settings : � Test tape : TTA - 100 (TAPE CENTER) � Test point : PHONES JACK (J1) � Adjustment location : SFR 51 � Volume : NON-CLIP (MAX - 10dB DOWN) Method : Play back the test tape and adjust SFR 51 so that the frequency is 3000 Hz ± 60 Hz. Then confirm WOW is less than 0.50%. 2. Head Azimuth Adjustment Settings : � Test tape : TTA - 330 (TAPE CENTER) � Test point : PHONES JACK (J1) � Adjustment location : Head Azimuth Adjustment Screw � Volume : NON-CLIP (MAX - 10dB DOWN) Method : Play back the test tape and adjust the screw so that the output becomes maximum and same phase.

�7�
