SONY GDM400PS/PST/PST9
Manual de Servicio

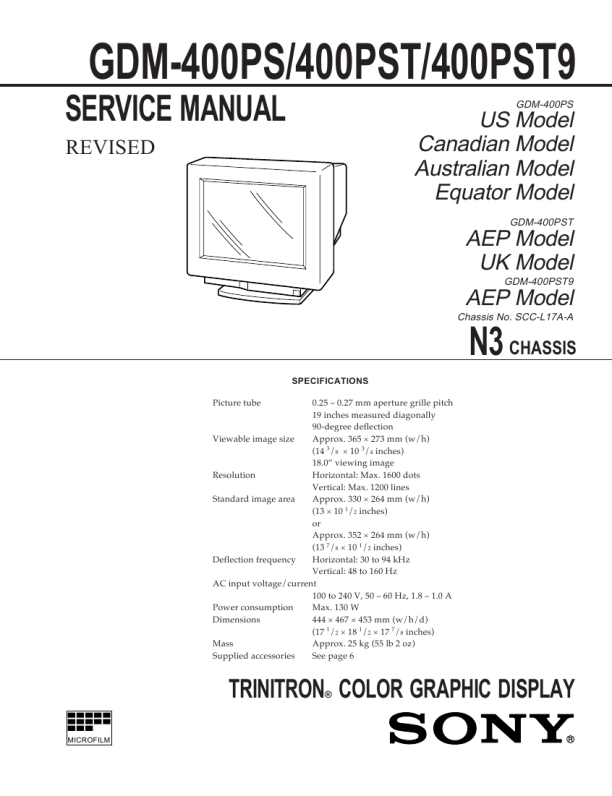

GDM-400PS/400PST/400PST9
SERVICE MANUAL
REVISED

US Model Canadian Model Australian Model Equator Model
GDM-400PS GDM-400PST

AEP Model UK Model
GDM-400PST9

AEP Model
Chassis No. SCC-L17A-A

N3 CHASSIS
SPECIFICATIONS Picture tube 0.25 � 0.27 mm aperture grille pitch 19 inches measured diagonally 90-degree deflection Approx. 365 � 273 mm (w/h) (14 3/8 � 10 3/4 inches) 18.0� viewing image Horizontal: Max. 1600 dots Vertical: Max. 1200 lines Approx. 330 � 264 mm (w/h) (13 � 10 1/2 inches) or Approx. 352 � 264 mm (w/h) (13 7/8 � 10 1/2 inches) Deflection frequency Horizontal: 30 to 94 kHz Vertical: 48 to 160 Hz AC input voltage/current 100 to 240 V, 50 � 60 Hz, 1.8 � 1.0 A Power consumption Max. 130 W Dimensions 444 � 467 � 453 mm (w/h/d) (17 1/2 � 18 1/2 � 17 7/8 inches) Mass Supplied accessories Approx. 25 kg (55 lb 2 oz) See page 6 Viewable image size

Resolution Standard image area

TRINITRON® COLOR GRAPHIC DISPLAY
MICROFILM
