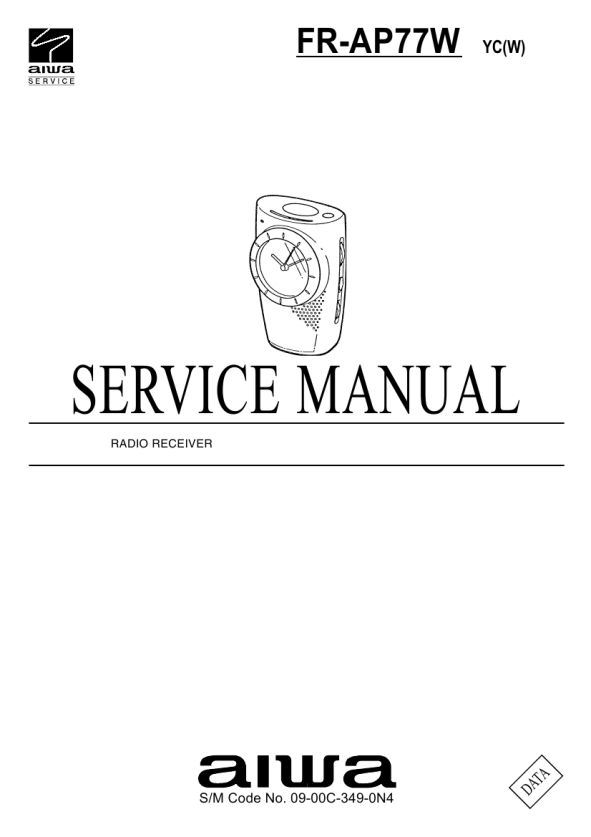

AIWA FR-AP77WYC
Manual de Servicio

ELECTRICAL ADJUSTMENT-1/1

1. AM IF Adjustment Settings: � Test point: TP-2, TP-5 � Adjustment location: T2 T2 .......................................................................... 450kHz 2. AM Frequency Range Adjustment Settings: � Test point: TP-2, TP-5 � Adjustment location: L5, TC4 L5 .......................................................................... 515kHz TC4 ....................................................................... 1650kHz 3. AM Tracking Adjustment Settings: � Test point: TP-6, TP-7 � Adjustment location: L2, TC1 L2 ................................................ 600kHz waveform max. TC1 ............................................. 1400kHz waveform max.

4. FM IF Adjustment Settings: � Test point: TP-2, TP-5 � Adjustment location: T1 T1 ........................................................................ 10.7MHz 5. FM Frequency Range Adjustment Settings: � Test point: TP-2, TP-5 � Adjustment location: L4, TC3 L4 ........................................................................... 87MHz TC3 ........................................................................ 109MHz 6. FM Tracking Adjustment Settings: � Test point: TP-6, TP-7 � Adjustment location: L3, TC2 L3 ................................................. 90MHz waveform max. TC2 ..............................................106MHz waveform max.

-12-
