CASIO DW9600WC-8T
Manual de Usuario

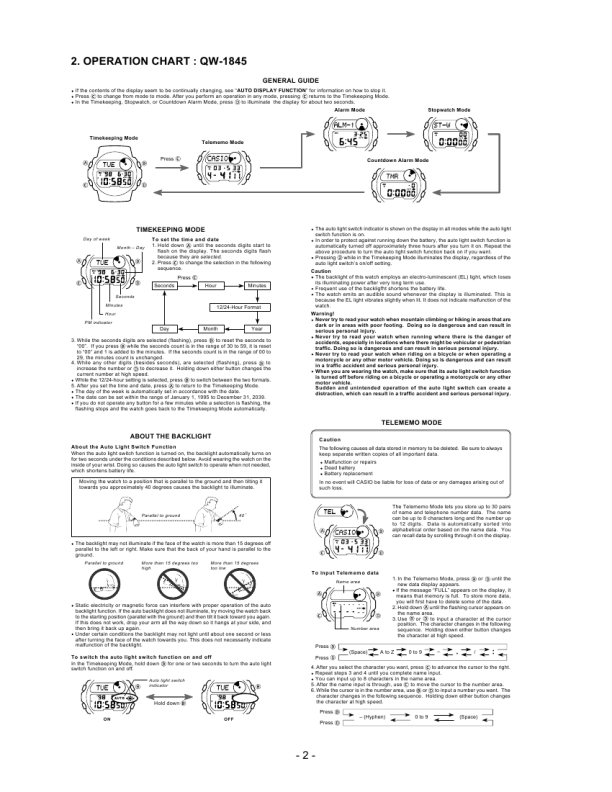

2. OPERATION CHART : QW-1845
GENERAL GUIDE
If the contents of the display seem to be continually changing, see �AUTO DISPLAY FUNCTION� for information on how to stop it. Press to change from mode to mode. After you perform an operation in any mode, pressing returns to the Timekeeping Mode. In the Timekeeping, Stopwatch, or Countdown Alarm Mode, press to illuminate the display for about two seconds. Alarm Mode Stopwatch Mode

Timekeeping Mode

Telememo Mode Press Countdown Alarm Mode

TIMEKEEPING MODE
Day of week Month � Day

To set the time and date
1. Hold down until the seconds digits start to flash on the display. The seconds digits flash because they are selected. 2. Press to change the selection in the following sequence. Press Seconds
Seconds

The auto light switch indicator is shown on the display in all modes while the auto light switch function is on. In order to protect against running down the battery, the auto light switch function is automatically turned off approximately three hours after you turn it on. Repeat the above procedure to turn the auto light switch function back on if you want. Pressing while in the Timekeeping Mode illuminates the display, regardless of the auto light switch�s on/off setting. Caution The backlight of this watch employs an electro-luminescent (EL) light, which loses its illuminating power after very long term use. Frequent use of the backligfht shortens the battery life. The watch emits an audible sound whenever the display is illuminated. This is because the EL light vibrates slightly when lit. It does not indicate malfunction of the watch. Warning! Never try to read your watch when mountain climbing or hiking in areas that are dark or in areas with poor footing. Doing so is dangerous and can result in serious personal injury. Never try to read your watch when running where there is the danger of accidents, especially in locations where there might be vehicular or pedestrian traffic. Doing so is dangerous and can result in serious personal injury. Never try to read your watch when riding on a bicycle or when operating a motorcycle or any other motor vehicle. Doing so is dangerous and can result in a traffic accident and serious personal injury. When you are wearing the watch, make sure that its auto light switch function is turned off before riding on a bicycle or operating a motorcycle or any other motor vehicle. Sudden and unintended operation of the auto light switch can create a distraction, which can result in a traffic accident and serious personal injury.

Hour

Minutes

Minutes Hour PM indicator

12/24-Hour Format

Day

Month

Year

3. While the seconds digits are selected (flashing), press to reset the seconds to �00�. If you press while the seconds count is in the range of 30 to 59, it is reset to �00� and 1 is added to the minutes. If the seconds count is in the range of 00 to 29, the minutes count is unchanged. 4. While any other digits (besides seconds), are selected (flashing), press to increase the number or to decrease it. Holding down either button changes the current number at high speed. While the 12/24-hour setting is selected, press to switch between the two formats. 5. After you set the time and date, press to return to the Timekeeping Mode. The day of the week is automatically set in accordance with the date. The date can be set within the range of January 1, 1995 to December 31, 2039. If you do not operate any button for a few minutes while a selection is flashing, the flashing stops and the watch goes back to the Timekeeping Mode automatically.

TELEMEMO MODE ABOUT THE BACKLIGHT
About the Auto Light Switch Function
When the auto light switch function is turned on, the backlight automatically turns on for two seconds under the conditions described below. Avoid wearing the watch on the inside of your wrist. Doing so causes the auto light switch to operate when not needed, which shortens battery life. Moving the watch to a position that is parallel to the ground and then tilting it towards you approximately 40 degrees causes the backlight to illuminate.

Caution
The following causes all data stored in memory to be deleted. Be sure to always keep separate written copies of all important data. Malfunction or repairs Dead battery Battery replacement In no event will CASIO be liable for loss of data or any damages arising out of such loss.

Parallel to ground

40�

The Telememo Mode lets you store up to 30 pairs of name and telephone number data. The name can be up to 8 characters long and the number up to 12 digits. Data is automatically sorted into alphabetical order based on the name data. You can recall data by scrolling through it on the display.

The backlight may not illuminate if the face of the watch is more than 15 degrees off parallel to the left or right. Make sure that the back of your hand is parallel to the ground.
Parallel to ground More than 15 degrees too high More than 15 degrees too low

To input Telememo data
Name area

Static electricity or magnetic force can interfere with proper operation of the auto backlight function. If the auto backlight does not illuminate, try moving the watch back to the starting position (parallel with the ground) and then tilt it back toward you again. If this does not work, drop your arm all the way down so it hangs at your side, and then bring it back up again. Under certain conditions the backlight may not light until about one second or less after turning the face of the watch towards you. This does not necessarily indicate malfunction of the backlight.

Number area

1. In the Telememo Mode, press or until the new data display appears. If the message �FULL� appears on the display, it means that memory is full. To store more data, you will first have to delete some of the data. 2. Hold down until the flashing cursor appears on the name area. 3. Use or to input a character at the cursor position. The character changes in the following sequence. Holding down either button changes the character at high speed.

Press (Space) A to Z 0 to 9 � � / � Press 4. After you select the character you want, press to advance the cursor to the right. Repeat steps 3 and 4 until you complete name input. You can input up to 8 characters in the name area. 5. After the name input is through, use to move the cursor to the number area. 6. While the cursor is in the number area, use or to input a number you want. The character changes in the following sequence. Holding down either button changes the character at high speed. Press

To switch the auto light switch function on and off
In the Timekeeping Mode, hold down switch function on and off. for one or two seconds to turn the auto light

Auto light switch indicator

Hold down
ON OFF

� (Hyphen) Press

0 to 9

(Space)

-2-
