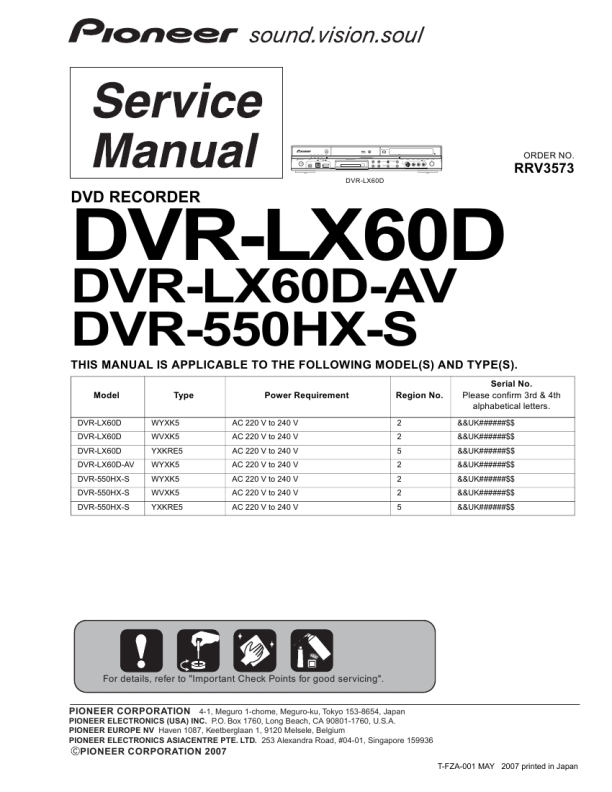

PIONEER DVR-550HX-S/WYXK5
Manual de Servicio

1

2

3

4

Display
1
A
LR P

23

4

5

8

7

6

1� Lights during playback; blinks when playback is paused. 2� Lights when copying. 3� Lights during recording; blinks when recording is paused. 4 Lights when a timer recording has been set. (Indicator blinks if the timer has been set to DVD but there isn�t a recordable disc loaded, or the timer has been set to record to the HDD but the HDD is not recordable.) NTSC Lights when the video output signal format is NTSC.
C

LP/SLP Lights when the recording mode is set to LP (long play) or SLP (super-long play). EP/SEP Lights when the recording mode is set to EP (extended play) or SEP (superextended play). MN Lights when the recording mode is set to MN (manual recording level) mode. Character display

B

6

7 R/RW Lights when a recordable DVD-R or DVD-RW disc is loaded. 8 PL Lights when a VR mode disc is loaded and the recorder is in Play List mode. 23 Shows the remote control mode (if nothing is displayed, the remote control mode is 1). V Lights when an unfinalized Video mode disc is loaded.

Indicates which channels of a bilingual broadcast are recorded. Lights when the component video output is set to progressive scan. VPS/PDC Lights when receiving a VPS/PDC broadcast during a VPS/PDC-enabled timer recording. 5
D

Recording quality indicators XP Lights when the recording mode is set to XP (high quality). SP Lights when the recording mode is set to SP (standard play).

E

F

22
1 2

DVR-LX60D
3 4
