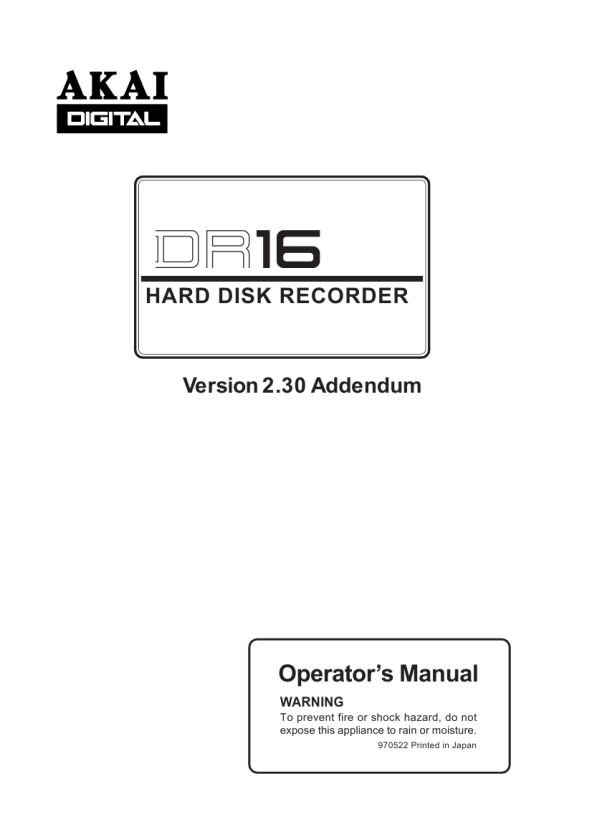

AKAI DR16 VERSION V2.30
Manual de Usuario

6

DR16 Addendum

Options
The following options are available for version 2.30.

GPIO
Installing an optional board IB-808G enables you to use GPIO (General Purpose Input and Output) and remote-control the DR16 from an external device. This optional board has 16 general purpose inputs (GPI) and 12 general purpose outputs (GPO). The following table shows the default operation of each pin. Other settings can only be assigned via an external remote controller, such as the DL1500 (V2.3 or higher).

GPI
Connecting the GPI to an external device that can switch between LOW and HIGH for each pin enables you to control the DR16 from the external device.
Pin number GPI-1 GPI-2 GPI-3 GPI-4 GPI-5 GPI-6 GPI-7 GPI-8 GPI-9 GPI-10 GPI-11 GPI-12 GPI-13 GPI-14 GPI-15 GPI-16 Operation TRACK REC1 is turned ON during LOW setting. TRACK REC2 is turned ON during LOW setting. TRACK REC3 is turned ON during LOW setting. TRACK REC4 is turned ON during LOW setting. TRACK REC5 is turned ON during LOW setting. TRACK REC6 is turned ON during LOW setting. TRACK REC7 is turned ON during LOW setting. TRACK REC8 is turned ON during LOW setting. Plays back when LOW is received. (PLAY) REC key is turned ON during the LOW setting. Stops when LOW is received. (STOP) Rehearsal is turned ON/OFF when LOW is received. (No action) All channels are turned ON when LOW is received. All TRACK REC are turned ON during LOW setting. All channels are turned OFF when LOW is received.

Version 2.3
