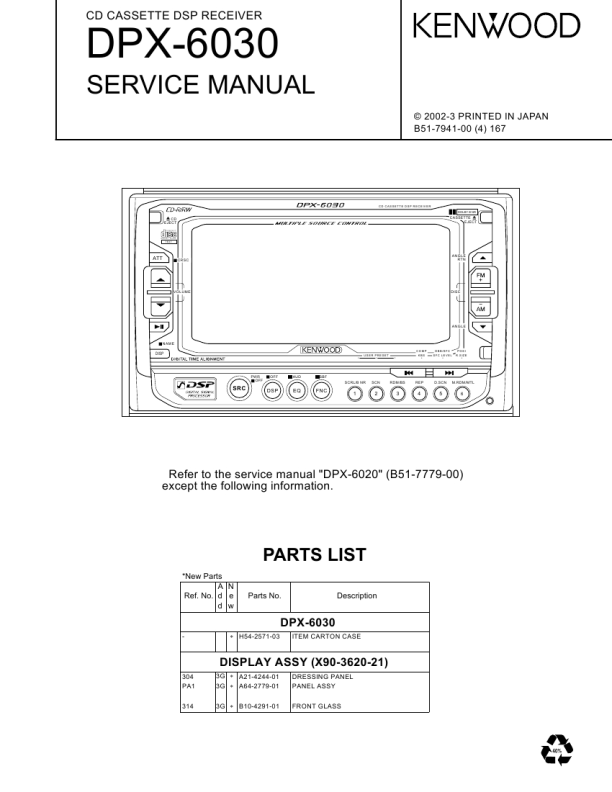

KENWOOD DPX6030
Manual de Servicio

CD CASSETTE DSP RECEIVER

DPX-6030
SERVICE MANUAL
© 2002-3 PRINTED IN JAPAN B51-7941-00 (4) 167

CD CASSETTE DSP RECEIVER
DOLBY B NR

CD EJECT
COMPACT

CASSETTE EJECT

DIGITAL AUDIO

TEXT

ATT

CRSC

ANGLE RTN

VOLUME

DISC

ANGLE

NAME

DISP

USER PRESET

COMP KBS

DBB/SFC POSI SFC LEVEL R.SIZE

PWR OFF

OFF

AUD

SBF SCRL/B NR SCN RDM/BS REP D.SCN M.RDM/MTL

SRC

DSP

EQ

FNC

1

2

3

4

5

6

Refer to the service manual "DPX-6020" (B51-7779-00) except the following information.

PARTS LIST
*New Parts AN Ref. No. d e dw Parts No. Description

DPX-6030
� H54-2571-03 ITEM CARTON CASE

DISPLAY ASSY (X90-3620-21)
304 PA1 314 3G � A21-4244-01 3G � A64-2779-01 3G � B10-4291-01 DRESSING PANEL PANEL ASSY FRONT GLASS
