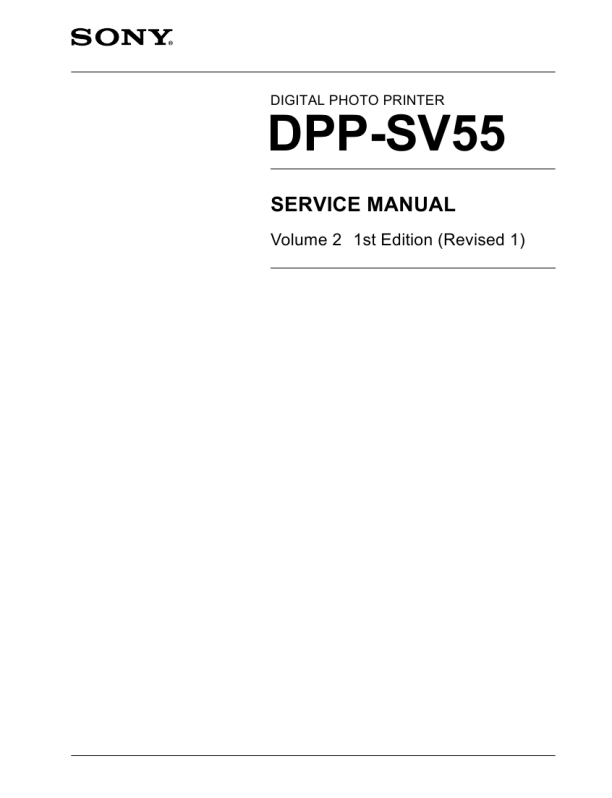

SONY DPPSV55 VOLUME 2
Manual de Servicio

Index

Section 6 Semiconductor Pin Assignments
The following describes the semiconductor types used in this unit. For semiconductors marked with page numbers in the index, refer to the corresponding pages in this section. However, in some cases incompatible types are also listed, therefore, when a part is to be replaced, also refer to the Spare Parts section. In addition, for semiconductors with ID Nos., refer to the separate CD-ROM titled �Semiconductor Pin Assignments� (Sony Part No. 9-968-546-xx) that allows searching for parts by semiconductor type or ID No. The semiconductors in the manual or on the CD-ROM are listed by equivalent types. Thus the external view or the index mark indication may differ from the actual type. Pin assignments and block diagrams are based on the IC manufacturer�s data book.
DIODE Page or ID No. TRANSISTOR Page or ID No.

1SS355TE-17 .................................................................. DC008-02 DA204U ........................................................................... DC001-01 DA204UT106 ................................................................... DC001-01 RB705D ........................................................................... DC001-03 RB705D-T146 .................................................................. DC001-03 UDZ-TE-17-2.7B .............................................................. DC008-04

2SB1424-T100-R ............................................................. TC002-01 2SB709A-R ...................................................................... TC001-01 2SB709A-R-TX ................................................................ TC001-01 2SD2537-T100VW ........................................................... TC002-02 DTA114EUA .................................................................... TC001-04 DTA114EUA-T106 ........................................................... TC001-04 DTC114EUA-T106 ........................................................... TC001-03 DTC114TK ....................................................................... TC001-03 DTC144EUA-T106 ........................................................... TC001-03 UN2124 ............................................................................ TC001-04

LED

Page or ID No.

AA1102W ......................................................................... LC003-01 AA1102W-TR ................................................................... LC003-01 PG1102W ........................................................................ LC003-01 PG1102W-TR .................................................................. LC003-01 SIR-34ST3FK ................................................................... LR001-02 SML-020MVT-T87 ........................................................... LC009-02

UN2124-TX ...................................................................... TC001-04 UN2211 ............................................................................ TC001-03 UN2211-TX ...................................................................... TC001-03 UN2212 ............................................................................ TC001-03 UN2212-TX ...................................................................... TC001-03 UN2213 ............................................................................ TC001-03 UN2213-TX ...................................................................... TC001-03 UN2215-QRS(TX) ............................................................ TC001-03 XP4215-TXE .................................................................... TC005-14

DPP-SV55 V2

6-1
