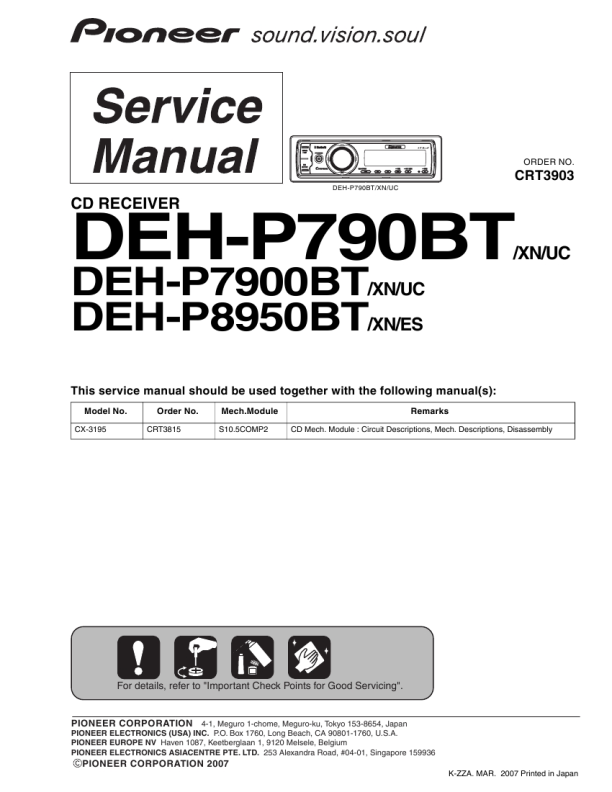

PIONEER DEH-P790BT
Manual de Servicio

1

2

3

4

- Jigs List
A

Name Test Disc L.P.F.

Jig No. TCD-782 GGF1539

Remarks Checking the grating Checking the grating (Two pieces) Removing the cord assy (BT antenna cable)

- Grease List
Name Grease Grease Grease Grease No. GEM1024 GEM1045 GEM1069 Remarks Drive Unit, CD Mechanism Module CD Mechanism Module Drive Unit

B

Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools:
C

Portions to be cleaned CD pickup lenses

Cleaning tools Cleaning liquid : GEM1004 Cleaning paper : GED-008 Cleaning tools Cleaning paper : GED-008

Portions to be cleaned Fans

D

E

F

98

DEH-P790BT/XN/UC
