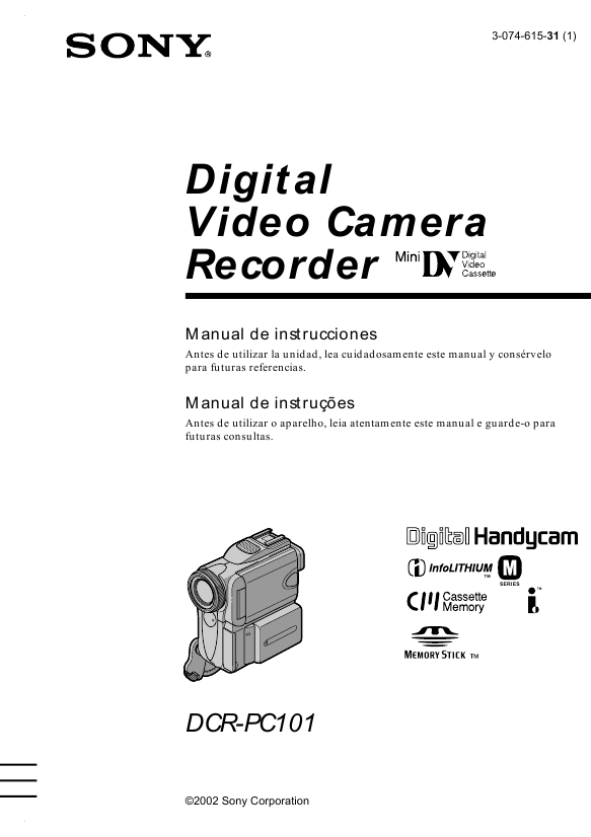

DCR-PC101E LEVEL2 Manual de Servicio
0 artículo(s) en Su carrito
Opiniones de los clientes
No hay comentarios de productos.
TEXT_PDF_SNIPPET
DCR-PC101/PC101E
4.
Overall Noise Level Check Camera recording and playback No signal: Insert a shorting plug in the MIC jack Audio left or right terminal of A/V jack Audio level meter Below �45 dBs (IHF-A filter ON, 20 kHz LPF ON)
Mode Signal Measurement Point Measuring Instrument Specified Value
Checking Method: 1) Insert a shorting plug in the MIC jack. 2) Record in the camera mode. 3) Playback the recorded section. 4) Check that the noise level is the specified value.
5.
Overall Separation Check Camera recording and playback 400 Hz, �66 dBs signal: MIC jack <right> [left] (Connect the MIC jack <left> [right] to GND) Audio <left> [right] terminal of A/V jack Audio level meter Below �40 dBs (IHF-A filter ON)
Mode Signal
Measurement Point Measuring Instrument Specified Value < > : Left channel check [ ] : Right channel check
Checking Method: 1) Input the 400 Hz, �66 dBs signal in the <right> [left] terminal of the MIC jack only. 2) Record in the camera mode. 3) Playback the recorded section. 4) Check that the signal level of the audio output <left> [right] terminal is the specified value.
