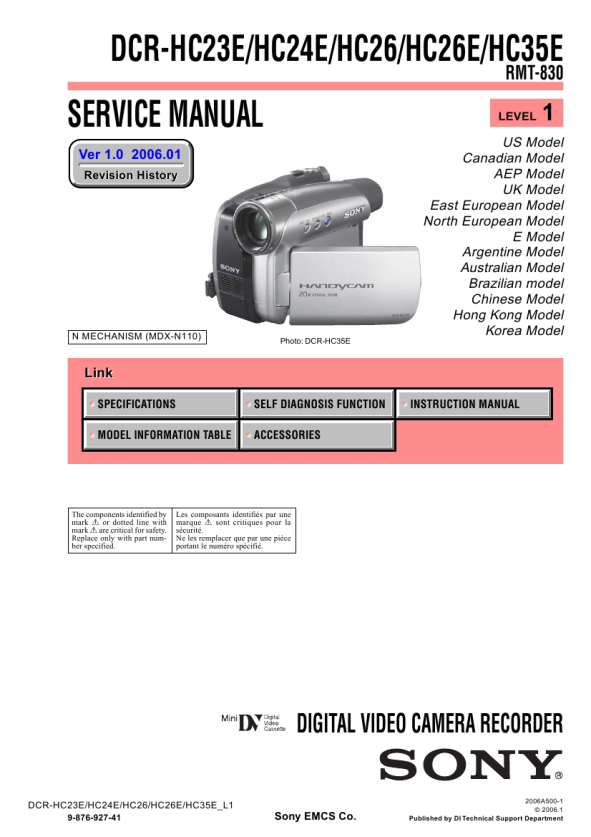

SONY DCR-HC23E LEVEL1
Manual de Servicio

Step2: Charging the battery pack (Continued)

3 Connect the AC Adaptor to the
DC IN jack on the Handycam Station for the DCR-HC35E or on your camcorder for the DCRHC23E/HC24E/HC26E. For DCR-HC35E:
DC IN jack

4 For DCR-HC35E:
Connect the mains lead to the AC Adaptor and the wall socket. Insert the camcorder into the Handycam Station securely, all the way to the bottom.

With the v mark facing up

For DCR-HC23E/HC24E/HC26E:
CHG (charge) lamp

The CHG (charge) lamp lights up and charging starts.
� When inserting the camcorder into the Handycam Station, close the DC IN jack cover.

DC IN jack With the v mark facing to the LCD screen

For DCR-HC23E/HC24E/HC26E: Connect the mains lead to the AC Adaptor and the wall socket.
CHG (charge) lamp

The CHG (charge) lamp lights up and charging starts.

10
