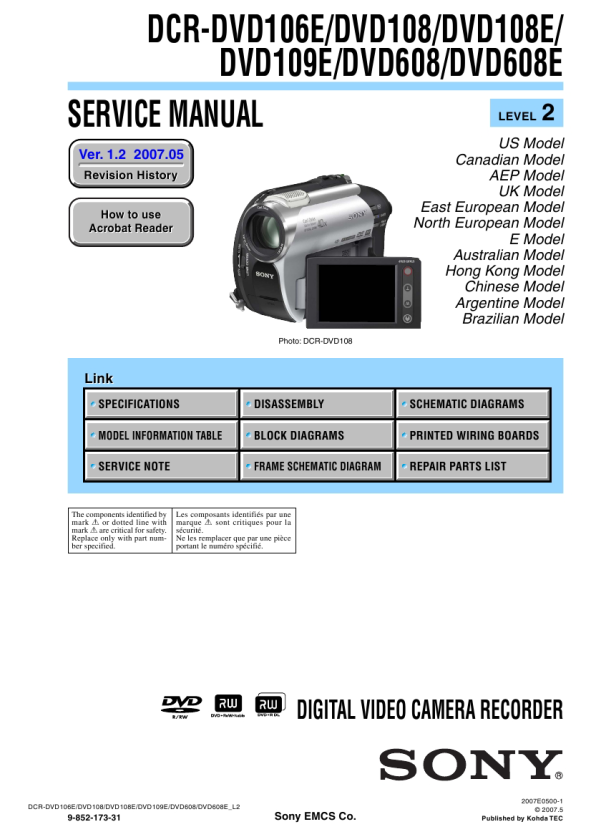

SONY DCR-DVD106E LEVEL2
Manual de Servicio

2. DISASSEMBLY
NOTE FOR REPAIR
� Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Do not insert the cable insufficiently nor crookedly. � When remove a connector, don�t pull at wire of connector. It is possible that a wire is snapped. � When installing a connector, don�t press down at wire of connector. It is possible that a wire is snapped. Cut and remove the part of gilt which comes off at the point. (Be careful or some pieces of gilt may be left inside)

DCR-DVD106E/DVD108/DVD108E/DVD109E/DVD608/DVD608E_L2

2-1
