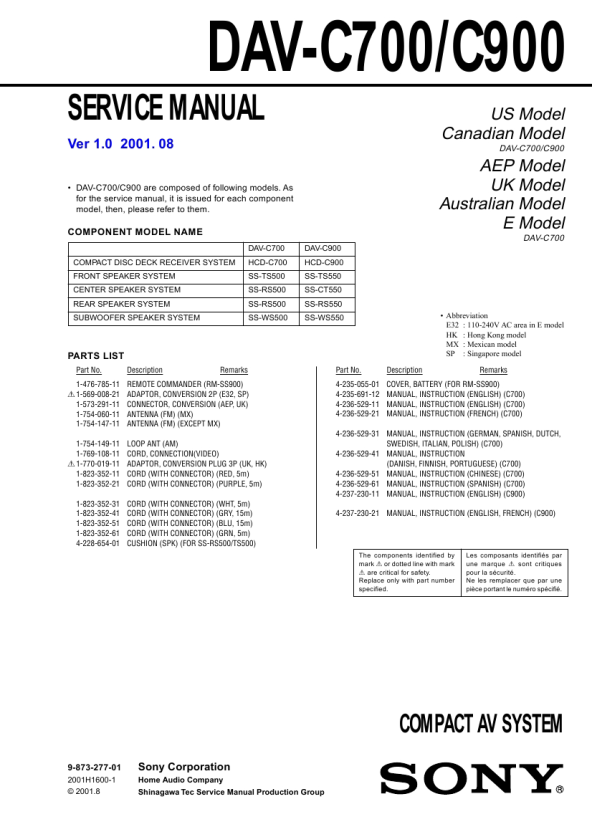

SONY DAVC900
Manual de Servicio

HCD-C700/C900

2-17. GEAR (GEAR A), GEAR (GEAR B), GEAR (U/D SLIDER)

6 Gear (gear B) 7 Screw +BVTP (2.6 � 8)

5 Gear (gear A) 2 Washer 3 Compression spring

8 Gear (U/D slider)

4 Gear (selection)

1 Gear (relay)

PRECAUTION DURING GEAR (GEAR U/D SLIDER), GEAR (GEAR B), GEAR (GEAR A) INSTALLATION
3 Gear (gear B)

Portion A

Adjust the gear (gear B) with the portion A as shown. Slider (U/D)
1 Slide the slider (U/D) fully in the arrow direction.

4 Gear (gear A) 2 Gear (U/D slider)

Slider (U/D) gear

Gear (gear B)

linearly

Adjust the gear so that it meshes with the bottom tooth of slider (U/D) gear, as shown.

Adjust so as to be aligned with gear B linearly, as shown.

16
