CHAPTER 5 TROUBLESHOOTING
9) Press SW104 once to store the new adjustment value. � Stapling will occur automatically so that you can check the stapling position. LED101 will indicate '0'. 10) Turn off the power. 11) Shift all bits of SW103 to OFF. 12) Turn on the power, and move down the swing guide. Adjusting the Stapling Position (rear 1-point stapling) If you have replaced the EEPROM (IC102) on the finisher controller PCB or the stapler, perform the following: 1) Set SW103 on the finisher controller PCB as follows: AB Configuration
ON
4.
Figure 5-109 � If the gap between the front jogging plate and the front edge of the stack is 1 mm or more, turn off the power, shift all bits of SW103 to OFF, and stop the adjustment work. Perform the alignment width adjustment, and then perform the stapling position adjustment once again. 4) Press SW104 on the finisher controller PCB. � Stapling will take place, and LED101 will indicate '0'. 5) Take out the stack of sheets, and check the position of the staple against the standard. If the position is correct, end the adjustment work, i.e., turn off the power, shift all bits of SW103 to OFF, and then turn on the power. If the stapling position must be adjusted, go to the next step.
1
2
3
4
5
6
7
8
Inch Configuration
ON
1
2
3
4
5
6
7
8
Figure 5-108 2) Press SW104 on the finisher controller PCB. � The swing guide of the machine will open and, at the same time, the front jogging plate and the rear jogging plate will move to the home position. Thereafter, the front jogging plate and the rear jogging plate will move to the rear 1-point stapling position. The stapler will also move to the rear 1-position stapling position. LED101 on the finisher controller PCB will indicate the present value, which is between '-12' and '14'. 3) Insert a stack of several A4 or LTR sheets into the processing tray. At this time, be sure to butt the rear edge of the stack against the rear jogging plate.
Direction of delivery
Figure 5-110 6) Press SW104 once so that you can enter a new value. � The stapler will return to the home position, and then will return to the stapling position once again. LED101, on the other hand, will indicate the present value.
5-4
COPYRIGHT © 1999 CANON INC.

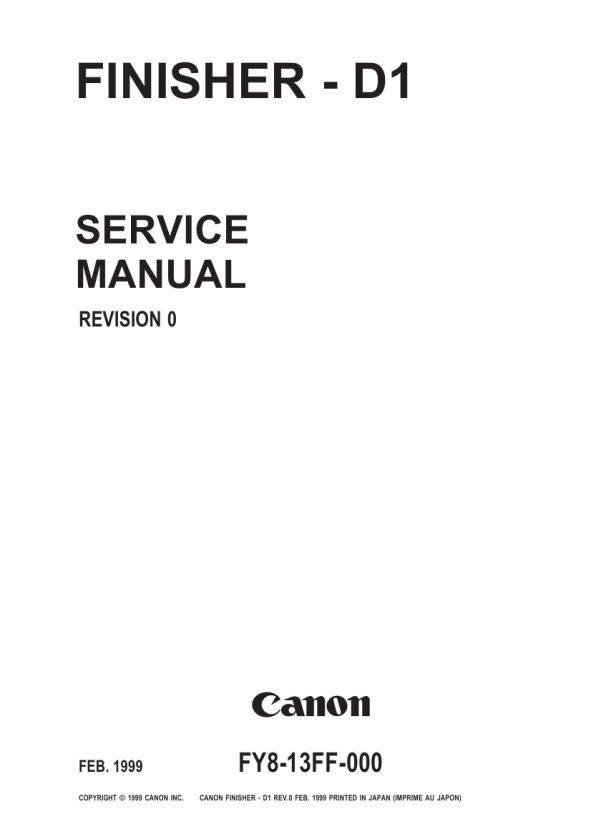

CANON FINISHER - D1 REV.0 FEB. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5 ±2 mm
|
|
|
> |
|
