Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Published by Service Dept. 298-6177-00 Sep.2004 Printed in Japan

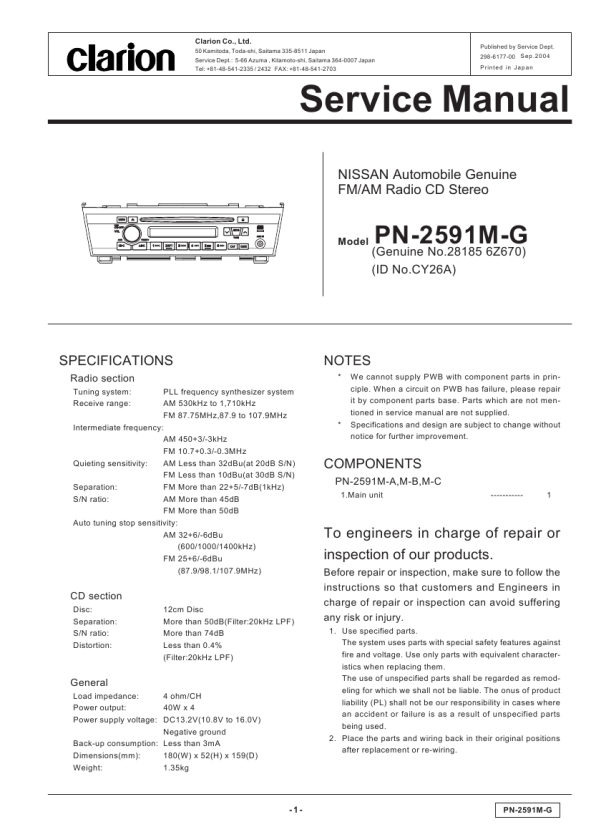

Service Manual
NISSAN Automobile Genuine FM/AM Radio CD Stereo
Model
PN-2591M-G (Genuine No.28185 6Z670)
(ID No.CY26A)
SPECIFICATIONS
Radio section
Tuning system: Receive range: PLL frequency synthesizer system AM 530kHz to 1,710kHz FM 87.75MHz,87.9 to 107.9MHz Intermediate frequency: AM 450+3/-3kHz FM 10.7+0.3/-0.3MHz Quieting sensitivity: AM Less than 32dBu(at 20dB S/N) FM Less than 10dBu(at 30dB S/N) Separation: FM More than 22+5/-7dB(1kHz) S/N ratio: AM More than 45dB FM More than 50dB Auto tuning stop sensitivity: AM 32+6/-6dBu (600/1000/1400kHz) FM 25+6/-6dBu (87.9/98.1/107.9MHz)
NOTES
* We cannot supply PWB with component parts in principle. When a circuit on PWB has failure, please repair it by component parts base. Parts which are not mentioned in service manual are not supplied. Specifications and design are subject to change without notice for further improvement.
*
COMPONENTS
PN-2591M-A,M-B,M-C
1.Main unit ----------1
To engineers in charge of repair or inspection of our products.
Before repair or inspection, make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury.
1. Use specified parts. The system uses parts with special safety features against fire and voltage. Use only parts with equivalent characteristics when replacing them. The use of unspecified parts shall be regarded as remodeling for which we shall not be liable. The onus of product liability (PL) shall not be our responsibility in cases where an accident or failure is as a result of unspecified parts being used. 2. Place the parts and wiring back in their original positions after replacement or re-wiring.
CD section
Disc: Separation: S/N ratio: Distortion: 12cm Disc More than 50dB(Filter:20kHz LPF) More than 74dB Less than 0.4% (Filter:20kHz LPF)
General
Load impedance: 4 ohm/CH Power output: 40W x 4 Power supply voltage: DC13.2V(10.8V to 16.0V) Negative ground Back-up consumption: Less than 3mA Dimensions(mm): 180(W) x 52(H) x 159(D) Weight: 1.35kg
-1-
PN-2591M-G
|
|
|
> |
|
