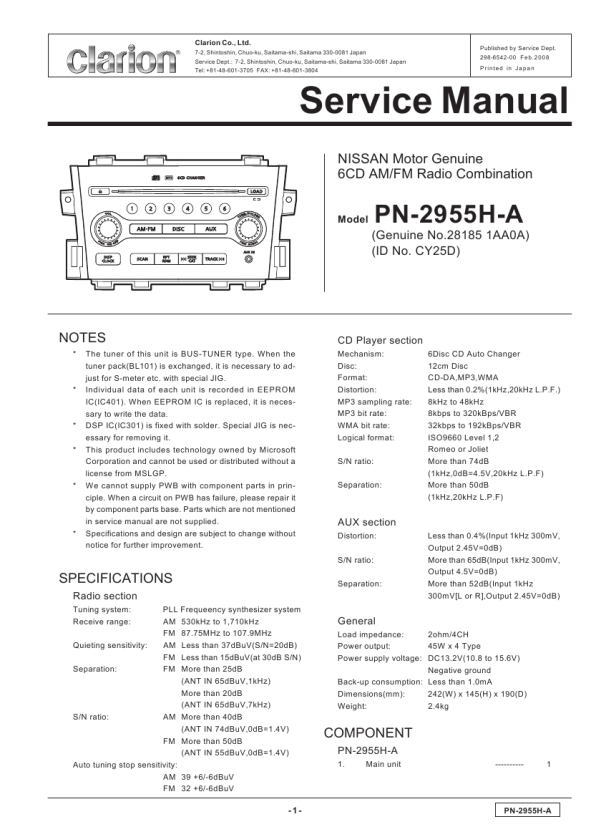

How to remove "C-DRIVE UNIT"
1. Remove the screw and DRIVE SPRING-A. 2. Rotate C-DRIVE UNIT internally. 3. Remove the washer, and remove C-DRIVE UNIT.
How to remove "LO-MOTOR-S-ASSY"
1. Remove two screws and DRIVE CHASSIS-B. 2. Remove the screw of the bottom side. 3. Remove the solder of SENSOR-L-FPC, and remove LO-MOTOR-S-ASSY.
1
C-DRIVE UNIT DRIVE CHASSIS-B
1
2 2 3 3
SENSOR-L-FPC LO-MOTOR-S-ASSY
How to remove "M-MTR SUB ASSY"
1. Remove two screws, and remove M-MTR SUB ASSY.
How to remove "UD-MOTOR-ASSY"
1. Remove the screw of the bottom side, and remove UD-MOTOR-ASSY.
