CLARION CY05B
Manual de Servicio

Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703

Published by Service Dept. 298-6201-00 Nov.2004 Printed in Japan

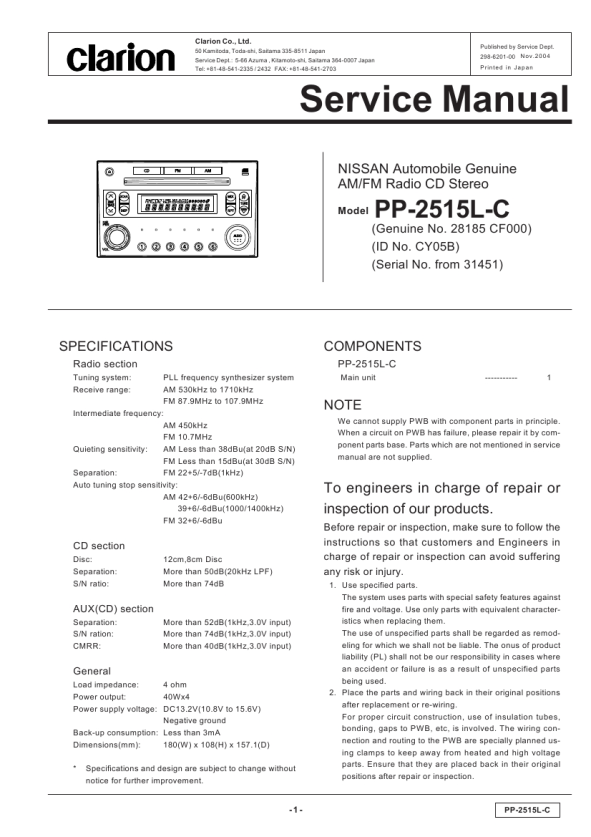

Service Manual
NISSAN Automobile Genuine AM/FM Radio CD Stereo
Model

PP-2515L-C
(Genuine No. 28185 CF000) (ID No. CY05B) (Serial No. from 31451)

SPECIFICATIONS
Radio section
PLL frequency synthesizer system AM 530kHz to 1710kHz FM 87.9MHz to 107.9MHz Intermediate frequency: AM 450kHz FM 10.7MHz Quieting sensitivity: AM Less than 38dBu(at 20dB S/N) FM Less than 15dBu(at 30dB S/N) Separation: FM 22+5/-7dB(1kHz) Auto tuning stop sensitivity: AM 42+6/-6dBu(600kHz) 39+6/-6dBu(1000/1400kHz) FM 32+6/-6dBu Tuning system: Receive range:

COMPONENTS
PP-2515L-C
Main unit ----------1

NOTE
We cannot supply PWB with component parts in principle. When a circuit on PWB has failure, please repair it by component parts base. Parts which are not mentioned in service manual are not supplied.

To engineers in charge of repair or inspection of our products.
Before repair or inspection, make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury.
1. Use specified parts. The system uses parts with special safety features against fire and voltage. Use only parts with equivalent characteristics when replacing them. The use of unspecified parts shall be regarded as remodeling for which we shall not be liable. The onus of product liability (PL) shall not be our responsibility in cases where an accident or failure is as a result of unspecified parts being used. 2. Place the parts and wiring back in their original positions after replacement or re-wiring. For proper circuit construction, use of insulation tubes, bonding, gaps to PWB, etc, is involved. The wiring connection and routing to the PWB are specially planned using clamps to keep away from heated and high voltage parts. Ensure that they are placed back in their original positions after repair or inspection.

CD section
Disc: Separation: S/N ratio: 12cm,8cm Disc More than 50dB(20kHz LPF) More than 74dB

AUX(CD) section
Separation: S/N ration: CMRR: More than 52dB(1kHz,3.0V input) More than 74dB(1kHz,3.0V input) More than 40dB(1kHz,3.0V input)

General
Load impedance: Power output: 4 ohm 40Wx4 Negative ground Back-up consumption: Less than 3mA Dimensions(mm): * 180(W) x 108(H) x 157.1(D)

Power supply voltage: DC13.2V(10.8V to 15.6V)

Specifications and design are subject to change without notice for further improvement.

-1-

PP-2515L-C
