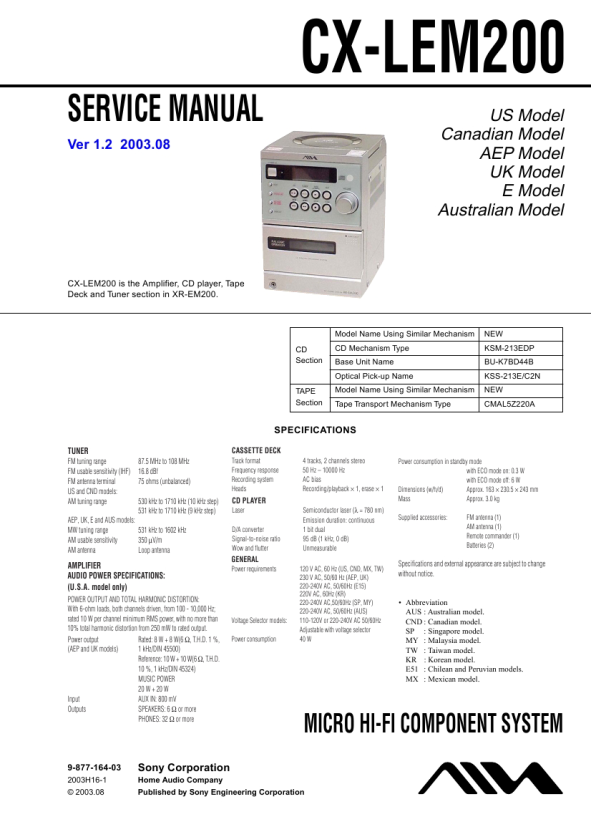

AIWA CX-LEM200
Manual de Servicio

CX-LEM200 SECTION 2 GENERAL
PARTS AND CONTROLS
Main unit: front
Refer to the pages indicated in parentheses for details.

This section is extracted from instruction manual.

5 ECD (7-9) Starts and pauses CD play. TUNER/BAND (7, 10) Selects tuner function and the tuner band. cTAPE (REC MUTING) (7, 12, 13) Starts playback. Also used to enter 4-second blank spaces during recording. AUX (7) Selects the function of external equipment connected to AUX IN jacks. 6 VOLUME (11, 14) Adjusts the volume. 7 f/r-, +t/g (8, 10-12, 14, 15)
CD: skips to a previous or a succeeding track when pressed, searches a track in fast forward or reverse playback when held down. Tape: rewinds or fast forwards the tape. Tuner: manually tunes up or down within the band.

Main unit: rear
Refer to the pages indicated in parentheses for details.

4 1 2 5 6 7 8 3
1 POWER 6STANDBY/ON (7) Switches the unit on and off (standby). 2 ECO (7) Sets the ECO mode on or off. SYNCHRO REC (13) Starts recording and CD play simultaneously. REC START/PAUSE (13) Starts and pauses recording. DISPLAY (8) Changes the display in CD playback mode. 3 PHONES jack Plug in optional headphones set with a stereo mini plug (ø3.5 mm). Speaker output is cancelled. 4 OPEN (8) Opens or closes the disc compartment.

1 2 3 4 5
1 AM jack and FM 75 � terminal (4) Plug in the supplied AM and FM antennas. 2 AUX IN jacks Accept analogue sound signals from external equipment. Connect external equipment using an optional connecting cable with RCA phono plugs (red plug to R jack, white plug to L jack). Refer also to the operating instructions for your equipment. To switch function to external input, press AUX. To change a source name in the display of the AUX function. Hold down AUX and press POWER while the power is on.
AUX VIDEO TV

En

sSTOP (8, 9, 12, 13)
CD and tape: stops playback. Tuner: clears a preset station.

TONE (11) Adjusts the bass or treble level. 8 zPUSH EJECT (12, 13) Opens or closes the cassette holder.

3 SUB WOOFER jack Connect optional powered sub woofer with a built-in amplifier to the jack. 4 SPEAKER terminals (4) Connect the speaker cords of the supplied speakers. 5 AC power cord (4)

5

Remote commander
Refer to the pages indicated in parentheses for details.

3 SHUFFLE/PROGRAM (8, 9) Selects shuffle or programmed CD playback mode. REPEAT (8) Selects repeat CD playback mode. 4 PRESETN,M (10) f/r,t/g (8, 10-12, 14, 15) ENTER (7, 10, 14, 15) Determines the mode. 5 ECD (7-9)
Stores the received station to preset.

0 TREBLE (11) Adjusts the treble level. BASS (11) Adjusts the bass level. ! s (8, 9, 12, 13) @ FUNCTION (13) Switches the active function among TAPE, TUNER, AUX (VIDEO or TV) and CD. # VOLUME +,- (11)

1 2

8

9

En

3 4 5 6 7

0 ! @ #

TUNER/BAND (7, 10) dTAPE (7, 12) Starts playback but cannot change the playback side. AUX (7) 6 DISPLAY (8) Changes the display in CD playback mode. DIMMER (7) Adjusts the display window brightness. SLEEP (14) Selects sleep-timer mode. 7 SHIFT Hold down when pressing a numbered button to change its function to that printed above the number. 8 MUTING (11) To turn off the sound temporarily. 9 CLEAR (9, 10, 15) CD: Clears a CD program. Tuner: Clears a preset station.

Buttons with the same or similar names on the main unit basically have the same function.
1 POWER (7) 2 1�10/0, >10 (8-10) CD: selects a track of the specified number. Tuner: tunes in the station with the specified preset number.

The numbered buttons take on these functions when pressed with SHIFT held down:
CLOCK (7) Selects clock mode. TIMER (14) Selects timer mode. TUNER MODE (10) Switches between stereo or monaural FM reception.

6

5
