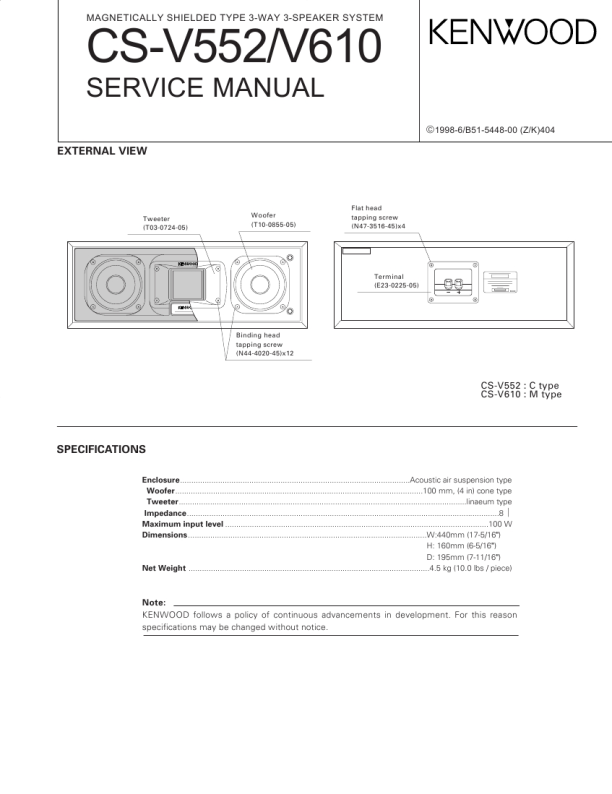

KENWOOD CSV552
Manual de Servicio

MAGNETICALLY SHIELDED TYPE 3-WAY 3-SPEAKER SYSTEM

CS-V552/V610
SERVICE MANUAL
©1998-6/B51-5448-00 (Z/K)404 EXTERNAL VIEW

Tweeter (T03-0724-05)

Woofer (T10-0855-05)

Flat head tapping screw (N47-3516-45)x4

Terminal (E23-0225-05)

Binding head tapping screw (N44-4020-45)x12

CS-V552 : C type CS-V610 : M type

SPECIFICATIONS
Enclosure.......................................................................................................Acoustic air suspension type Woofer...............................................................................................................100 mm, (4 in) cone type Tweeter.................................................................................................................................linaeum type Impedance............................................................................................................................................8 � Maximum input level ......................................................................................................................100 W Dimensions...........................................................................................................W:440mm (17-5/16") H: 160mm (6-5/16") D: 195mm (7-11/16") Net Weight ............................................................................................................4.5 kg (10.0 lbs / piece)

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
