KENWOOD CSP212
Manual de Servicio

2WAY SPEAKER SYSTEM

CS-P212
SERVICE MANUAL

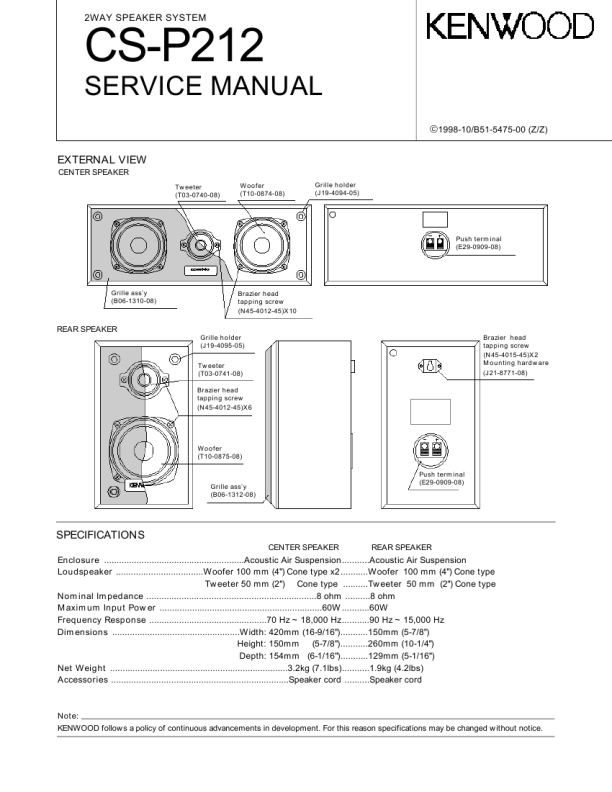

©1998-10/B51-5475-00 (Z/Z) EXTERNAL VIEW
CENTER SPEAKER
Tweeter (T03-0740-08) Woofer (T10-0874-08) Grille holder (J19-4094-05)

Push terminal (E29-0909-08)

Grille ass�y (B06-1310-08)

Brazier head tapping screw (N45-4012-45)X10

REAR SPEAKER

Grille holder (J19-4095-05) Tweeter (T03-0741-08) Brazier head tapping screw (N45-4012-45)X6

Brazier head tapping screw (N45-4015-45)X2 Mounting hardware (J21-8771-08)

Woofer (T10-0875-08) Push terminal (E29-0909-08)

Grille ass�y (B06-1312-08)

SPECIFICATIONS
CENTER SPEAKER REAR SPEAKER

Enclosure ........................................................Acoustic Air Suspension...........Acoustic Air Suspension Loudspeaker ...................................Woofer 100 mm (4") Cone type x2...........Woofer 100 mm (4") Cone type Tweeter 50 mm (2") Cone type ..........Tweeter 50 mm (2") Cone type Nominal Impedance ....................................................................8 ohm ..........8 ohm Maximum Input Power .................................................................60W...........60W Frequency Response ...............................................70 Hz ~ 18,000 Hz...........90 Hz ~ 15,000 Hz Dimensions ...................................................Width: 420mm (16-9/16")...........150mm (5-7/8") .......................................................................Height: 150mm (5-7/8")...........260mm (10-1/4") ........................................................................Depth: 154mm (6-1/16")...........129mm (5-1/16") Net Weight .......................................................................3.2kg (7.1lbs)...........1.9kg (4.2lbs) Accessories .......................................................................Speaker cord ..........Speaker cord

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
