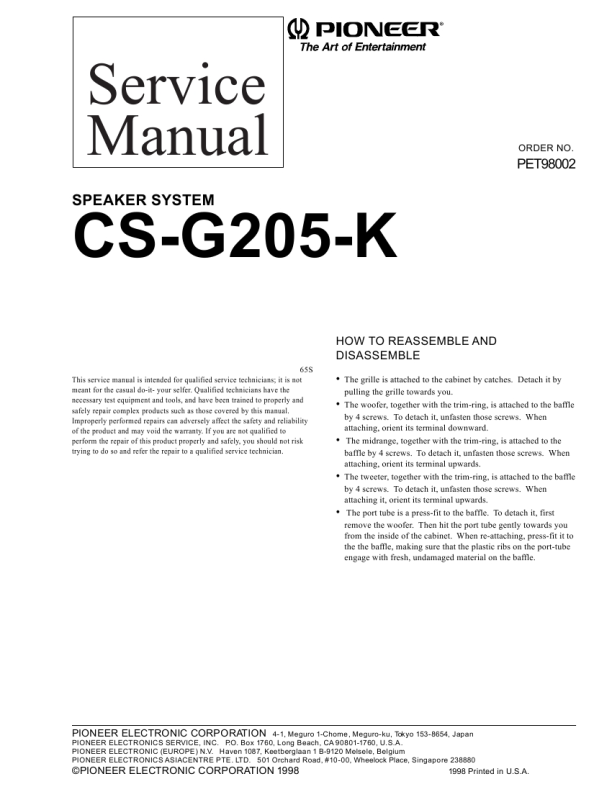

PIONEER CS-G205-K
Manual de Servicio

CS-G205-K

PARTS LIST
NOTES: � Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. � The � �mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

For Packing
Mark No. Description Parts No. Mark No. Description Parts No.

Plastic Grille Assy Low Frequency Trans Screw for LF Trans Mid Freq Trans (E77CP60-70F) Screw for MF Trans High Freq Trans (P66AP32-56F) Screw for HF Trans Port Tube (Plastic) Network Assy Instruction Manual Speaker Wire

257474 25-57A/XL 222011 231536 222011 194709 222011 256906 234733 257469 101717

Packing Case Corner Pad Assy Center Divider Poly Bag

257449 149744 257454 142505

SCHEMATIC DIAGRAM
RED INPUT BLK WHT Woofer WHT BLU

GRN Mid Range WHT 3.9 µ F / 50 V RED Tweeter

2
