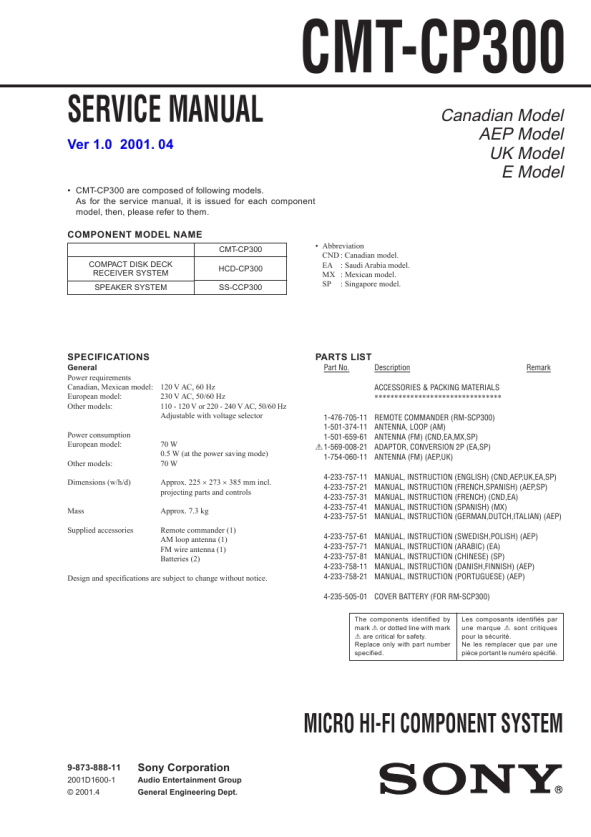

CMT-CP300
SERVICE MANUAL
Ver 1.0 2001. 04
� CMT-CP300 are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
Canadian Model AEP Model UK Model E Model
COMPONENT MODEL NAME
CMT-CP300 COMPACT DISK DECK RECEIVER SYSTEM SPEAKER SYSTEM HCD-CP300 SS-CCP300 � Abbreviation CND : Canadian model. EA : Saudi Arabia model. MX : Mexican model. SP : Singapore model.
SPECIFICATIONS
General Power requirements Canadian, Mexican model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Other models: 110 - 120 V or 220 - 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption European model: Other models: Dimensions (w/h/d)
PARTS LIST
Part No. Description ACCESSORIES & PACKING MATERIALS ******************************** 1-476-705-11 REMOTE COMMANDER (RM-SCP300) 1-501-374-11 ANTENNA, LOOP (AM) 1-501-659-61 ANTENNA (FM) (CND,EA,MX,SP) 0 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP) 1-754-060-11 ANTENNA (FM) (AEP,UK) 4-233-757-11 4-233-757-21 4-233-757-31 4-233-757-41 4-233-757-51 4-233-757-61 4-233-757-71 4-233-757-81 4-233-758-11 4-233-758-21 MANUAL, INSTRUCTION (ENGLISH) (CND,AEP,UK,EA,SP) MANUAL, INSTRUCTION (FRENCH,SPANISH) (AEP,SP) MANUAL, INSTRUCTION (FRENCH) (CND,EA) MANUAL, INSTRUCTION (SPANISH) (MX) MANUAL, INSTRUCTION (GERMAN,DUTCH,ITALIAN) (AEP) MANUAL, INSTRUCTION (SWEDISH,POLISH) (AEP) MANUAL, INSTRUCTION (ARABIC) (EA) MANUAL, INSTRUCTION (CHINESE) (SP) MANUAL, INSTRUCTION (DANISH,FINNISH) (AEP) MANUAL, INSTRUCTION (PORTUGUESE) (AEP) Remark
70 W 0.5 W (at the power saving mode) 70 W Approx. 225 � 273 � 385 mm incl. projecting parts and controls Approx. 7.3 kg Remote commander (1) AM loop antenna (1) FM wire antenna (1) Batteries (2)
Mass Supplied accessories
Design and specifications are subject to change without notice.
4-235-505-01 COVER BATTERY (FOR RM-SCP300)
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
MICRO HI-FI COMPONENT SYSTEM
9-873-888-11
2001D1600-1 © 2001.4
Sony Corporation
Audio Entertainment Group General Engineering Dept.
|
|
|
> |
|
