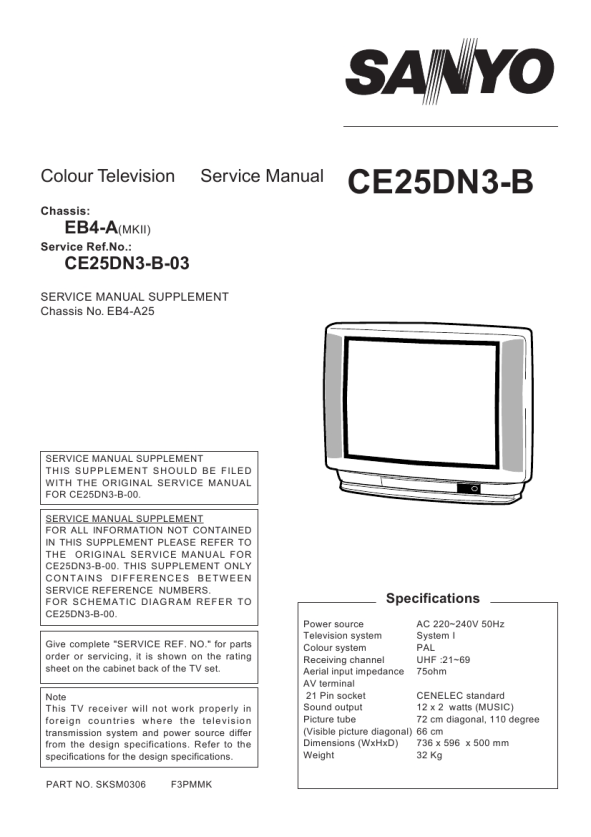

CE25DN3-B-03
SERVICE MANUAL SUPPLEMENT Chassis No. EB4-A25
SERVICE MANUAL SUPPLEMENT THIS SUPPLEMENT SHOULD BE FILED WITH THE ORIGINAL SERVICE MANUAL FOR CE25DN3-B-00. SERVICE MANUAL SUPPLEMENT FOR ALL INFORMATION NOT CONTAINED IN THIS SUPPLEMENT PLEASE REFER TO THE ORIGINAL SERVICE MANUAL FOR CE25DN3-B-00. THIS SUPPLEMENT ONLY CONTAINS DIFFERENCES BETWEEN SERVICE REFERENCE NUMBERS. FOR SCHEMATIC DIAGRAM REFER TO CE25DN3-B-00. Give complete "SERVICE REF. NO." for parts order or servicing, it is shown on the rating sheet on the cabinet back of the TV set. Note This TV receiver will not work properly in foreign countries where the television transmission system and power source differ from the design specifications. Refer to the specifications for the design specifications. PART NO. SKSM0306 F3PMMK
Specifications
Power source Television system Colour system Receiving channel Aerial input impedance AV terminal 21 Pin socket Sound output Picture tube (Visible picture diagonal) Dimensions (WxHxD) Weight AC 220~240V 50Hz System I PAL UHF :21~69 75ohm CENELEC standard 12 x 2 watts (MUSIC) 72 cm diagonal, 110 degree 66 cm 736 x 596 x 500 mm 32 Kg
