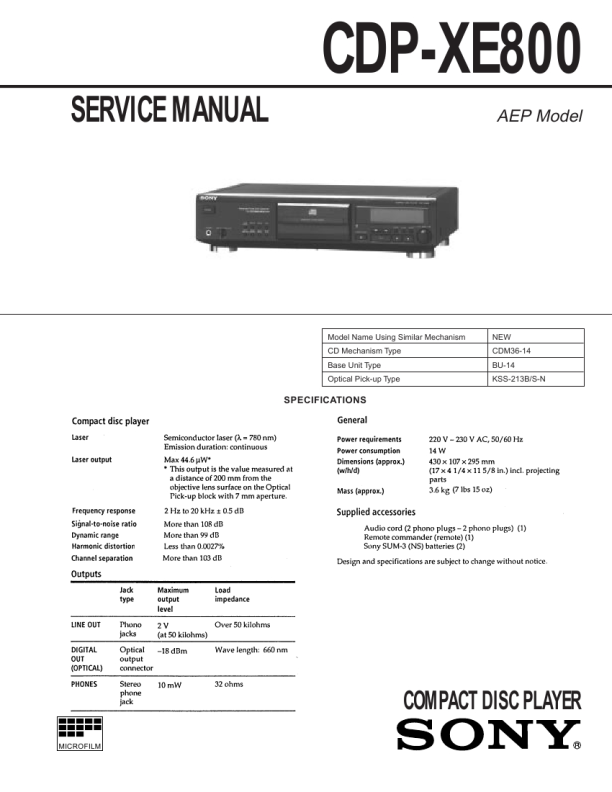

SECTION 3 DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. FRONT PANEL ASSEMBLY
1 Push the part A in the direction of arrow to remove the loading panel upward.
A part
5 Two screws (BVTP2.6x8)
7 Panel bracket
Claw
3 Connector (CN351)
6 Wire
8 Remove the front panel assembly with care to claws.
4 Connector (CN302)
(Flat type 23 core)
2 Three screws (BVTP3x8)
Claw
�5�
|
