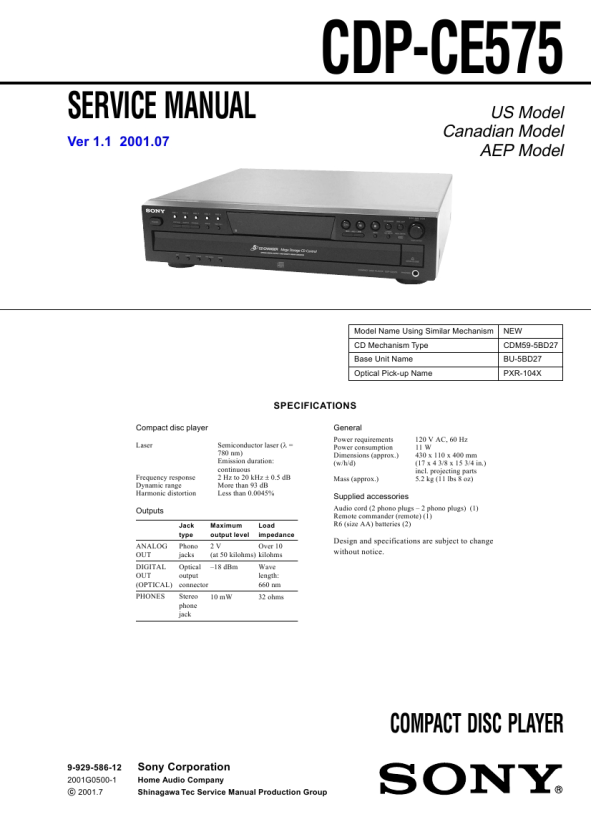

SONY CDPCE575
Manual de Servicio

CDP-CE575 SECTION 4 ASSEMBLY
Note: Follow the assembly procedure in the numerical order given.

ADJUSTING PHASE OF SWING GEAR AND GEAR (U/D)
5 stopper washer (FR) 4 Push fully the shaft of shaft gear and align the hole shape of gear (loading B). 3 Let the swing gear through under the chassis h and engage its dowel g with the groove f of rotary encoder. 6 screw (PTPWH M2.6)

g

2 Install the rotary encoder so that its groove f comes to the position shown in the figure.

f h

1 Insert the shaft gear up to the position where its shaft comes out by 5 mm.

circle mark

circle mark 8 screw (PTPWH M2.6)

gear (RV) swing gear Fig. A 7 gear (U/D) q; screw (PTPWH M2.6)

9 gear (RV) Note: Align swing gear, a circle mark on the gear (U/D), and the teeth of gear (RV) to the position showing in the Fig. A.

13
