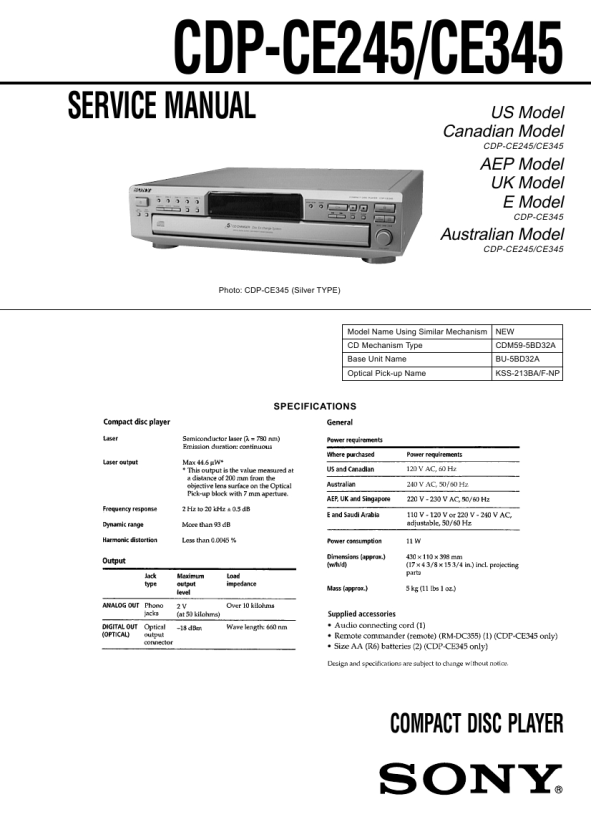

SONY CDPCE245
Manual de Servicio

CD MECHANISM DECK (CDM59-5BD32A)

3 three screws (BVTP3 � 8)

9 CD mechanism deck (CDM59-5BD32A)

5 screw (BVTP3 � 8) a 2 three screws (BVTP3 � 8)

4 Slide the tray until the screw that fixes the table ass�y can be seen through around hole a in the table ass�y.

6

7 wire (flat type) (21 core) (CN302)

8 connector (CN311) 1 Insert a tapering driver from the bottom of the chassis, and turn it in the direction of the arrow until the base unit goes down to the lowest position.

MAIN BOARD
3 two screws (PTTWH3 � 6) 2 two screws (BVTP3 � 8)

5 MAIN board

1 two screws (BVTP3 � 8)

4 two PC board holders

6
