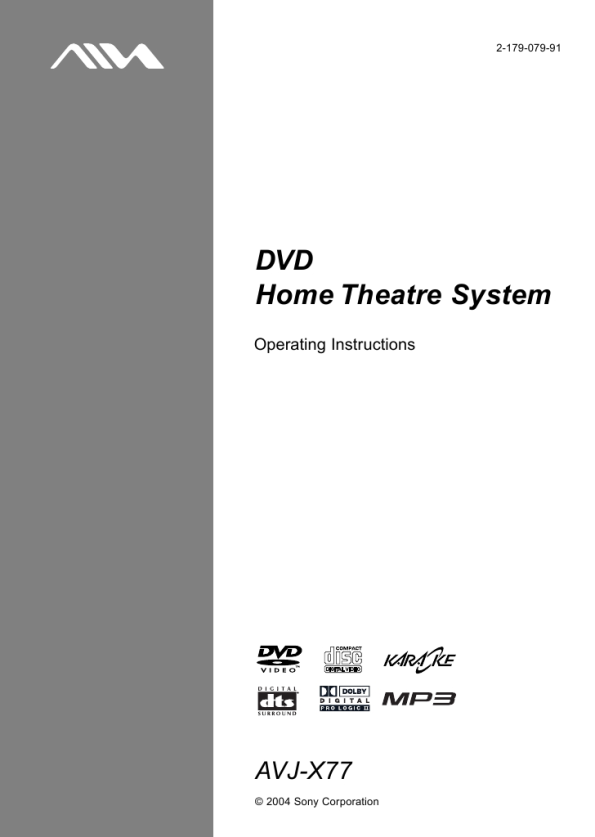

AIWA AVJX77
Manual de Usuario

Radio Operation Presetting the Radio stations
You can preset 30 stations for FM and AM (MW). Before tuning, make sure that you have turned down the volume.

Listening to the Radio
Preset radio stations in the DVD Receiver�s memory first (see �Presetting radio stations� on the left).

1

1 2

Press TUNER/BAND on the remote control until FM or AM (MW) appears in the display window. And then every time you press TUNER/BAND, FM and AM (MW) changes alternately.

Press TUNER/BAND until AM (MW) or FM appears in the Display Window.
The last received station is tuned in.

2 Press PRESET -/+ repeatedly to select the
preset station you want.
Each time you press the button, the DVD receiver tunes in one preset station at a time.

remote 3 Press and hold TUNING - or + on thethe control for about two seconds until frequency indication starts to change, then release.
Scanning stops when the DVD Receiver tunes in a station. �TUNED� and �ST� (for stereo program) appear in the Display Window.

3

Adjust the volume by pressing VOLUME + or repeatedly.

To turn off the radio
Press @ / 1 to turn the DVD Receiver off or select another function mode (CD/DVD or VIDEO).

4 6 7

Press TUNER MENU on the remote control.
A preset number will flash in the Display Window.

To listen to non-preset radio stations
Use manual or automatic tuning in step 2. For manual tuning, press TUNING - or + on the remote control repeatedly. For automatic tuning, press and hold TUNING - or + for about two seconds on the remote control.

5 select the preset number you want.
The station is stored.

Press TUNING - or + on the remote control to Press TUNER MENU on the remote control again.

Repeat steps 3 to 6 to store other stations.

To select a preset radio station directly
You can use the number buttons on the remote control to select a preset radio station directly. For example, to listen to preset station 4, press 4 on the remote control. To listen to preset station 19, press 1 then 9 (within 3 seconds). For your reference If an FM program is noisy Press FM MODE on the remote control so that �ST� disappears in the display window. There will be no stereo effect, but the reception will improve. Press FM MODE again to restore the stereo effect. To improve reception Reorient the supplied antennas.

To tune in a station with a weak signal
Press TUNING - or + repeatedly in step 3 to tune in the station manually.

To clear all the stored stations
Press and hold TUNER MENU for about two seconds and �CLEAR ALL� is appeared in the display window and then press TUNER MENU again, the stations are cleared. If you have accidentally entered into the "CLEAR ALL" mode and you do not wish to clear the memory, do not press any key. After a few seconds, the "CLEAR ALL" display will go off by itself and change to normal mode. Note If all stations have already been entered, the FULL message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 5-6 as above.

32
