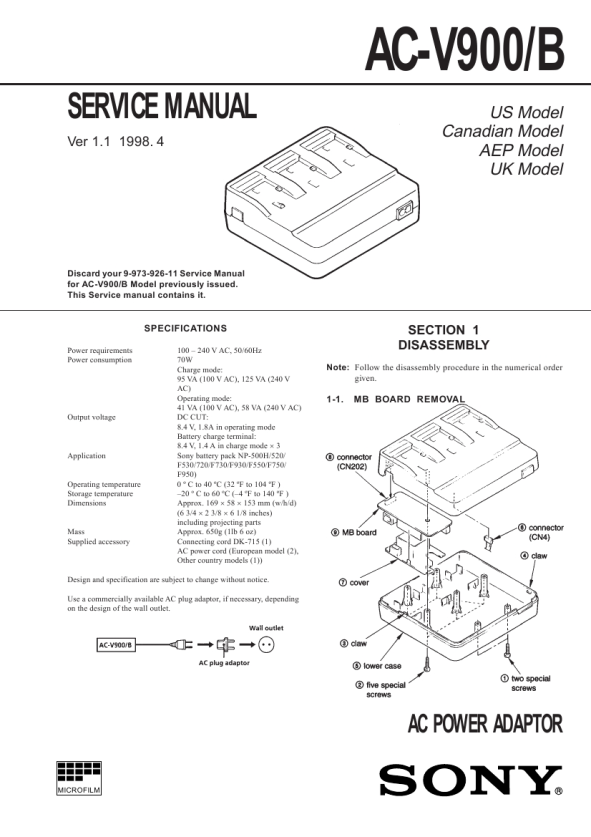

SECTION 2 REPAIR PARTS LIST
2-1. EXPLODED VIEWS
SECTION 3 CHECK
3-1. CHECK THE FUSE AND FUSIBLE RESISTOR
3-1-1. US, Canadian model
If a fuse has blow out, the mount board will be faulty. Check the fusible resistor 1 for the MB board (ACC-36CE), or fuse 2 for the MB board (ACC-36 UC). 3-1-2. AEP, UK model
Ref. No. !1 !1 2 3 4 5 !6 !7 !7 8 9 10 CN302 ! F1
Part No.
Description
Remark
A-4946-029-A MB BOARD, COMPLETE (ACC-36UC) (US, Canadian) A-4946-032-A MB BOARD, COMPLETE (ACC-36CE) (AEP, UK) A-4925-971-A CH BOARD, COMPLETE (ACC-29) 2-409-117-01 CASE, UPPER 2-439-769-01 LABEL, BATTERY, SONY (US, Canadian) 2-433-211-01 PLATE, LIGHT GUIDE A-4946-032-A MB BOARD, COMPLETE (ACC-36CE) A-4946-031-A F BOARD, COMPLETE (ACC-36UC) (US, Canadian) A-4946-034-A F BOARD, COMPLETE (ACC-36CE) (AEP, UK) 2-434-468-01 SCREW, 2.6X8, B TIGHT 2-409-118-01 3-946-773-01 1-694-110-12 1-532-465-31 CASE, LOWER SCREW, SPECIAL TAPPING TERMINAL BOARD, BATTERY LITHIUM FUSE (250V/3.15A)
! !
ACCESSORIES & PACKING MATERIALS ******************************** 1-690-827-21 CORD, POWER (AEP) 1-769-635-21 CORD, CONNECTION (DK715) 1-775-549-21 CORD, POWER (US, Canadian) 3-859-221-13 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, ITALIAN)
The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified.
Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
Sony Corporation
9-973-926-12
Personal A&V Products Company
98D0512-1 Printed in Japan © 1998. 4 Published by Service and Safety Engineering Dept. (Osaki East)
