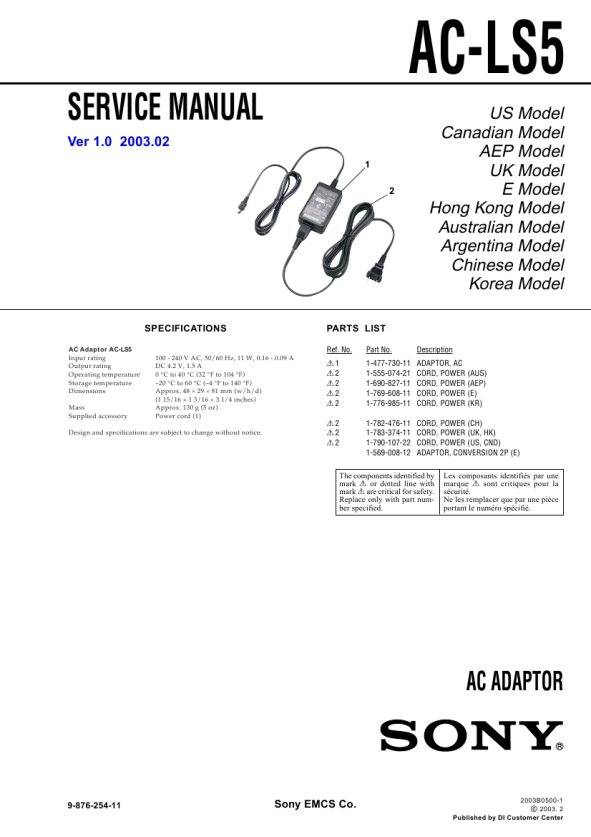

AC-LS5
SERVICE MANUAL
Ver 1.0 2003.02
1 2
US Model Canadian Model AEP Model UK Model E Model Hong Kong Model Australian Model Argentina Model Chinese Model Korea Model
SPECIFICATIONS
AC Adaptor AC-LS5 Input rating Output rating Operating temperature Storage temperature Dimensions Mass Supplied accessory 100 - 240 V AC, 50/60 Hz, 11 W, 0.16 - 0.09 A DC 4.2 V, 1.5 A 0 °C to 40 °C (32 °F to 104 °F) �20 °C to 60 °C (�4 °F to 140 °F) Approx. 48 � 29 � 81 mm (w/h/d) (1 15/16 � 1 3/16 � 3 1/4 inches) Approx. 130 g (5 oz) Power cord (1)
PARTS LIST
Ref. No. 01 02 02 02 02 02 02 02 Part No. 1-477-730-11 1-555-074-21 1-690-827-11 1-769-608-11 Description ADAPTOR, AC CORD, POWER (AUS) CORD, POWER (AEP) CORD, POWER (E)
1-776-985-11 CORD, POWER (KR) 1-782-476-11 1-783-374-11 1-790-107-22 1-569-008-12 CORD, POWER (CH) CORD, POWER (UK, HK) CORD, POWER (US, CND) ADAPTOR, CONVERSION 2P (E) Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
Design and specifications are subject to change without notice.
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.
AC ADAPTOR
9-876-254-11
Sony EMCS Co.
2003B0500-1 C 2003. 2 Published by DI Customer Center
|
|
|
> |
|
