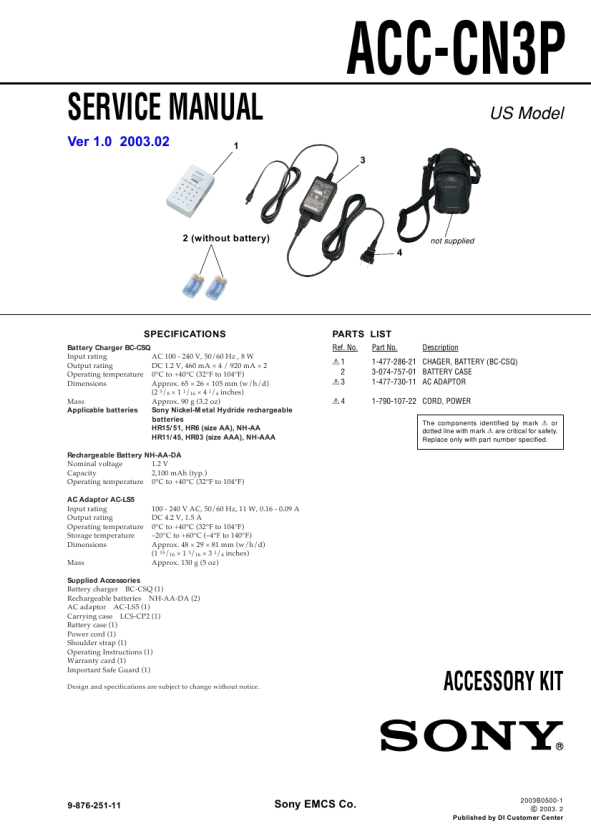

ACC-CN3P
SERVICE MANUAL
Ver 1.0 2003.02
1 3
US Model
2 (without battery) 4
not supplied
SPECIFICATIONS
Battery Charger BC-CSQ Input rating AC 100 - 240 V, 50/60 Hz , 8 W Output rating DC 1.2 V, 460 mA � 4 / 920 mA � 2 Operating temperature 0°C to +40°C (32°F to 104°F) Dimensions Mass Applicable batteries Approx. 65 � 26 � 105 mm (w/h/d) (2 5/8 � 1 1/16 � 4 1/4 inches) Approx. 90 g (3.2 oz) Sony Nickel-Metal Hydride rechargeable batteries HR15/51, HR6 (size AA), NH-AA HR11/45, HR03 (size AAA), NH-AAA
PARTS LIST
Ref. No. 01 2 03 04 Part No. Description 1-477-286-21 CHAGER, BATTERY (BC-CSQ) 3-074-757-01 BATTERY CASE 1-477-730-11 AC ADAPTOR 1-790-107-22 CORD, POWER
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.
Rechargeable Battery NH-AA-DA Nominal voltage 1.2 V Capacity 2,100 mAh (typ.) Operating temperature 0°C to +40°C (32°F to 104°F) AC Adaptor AC-LS5 Input rating Output rating Operating temperature Storage temperature Dimensions Mass
100 - 240 V AC, 50/60 Hz, 11 W, 0.16 - 0.09 A DC 4.2 V, 1.5 A 0°C to +40°C (32°F to 104°F) �20°C to +60°C (�4°F to 140°F) Approx. 48 � 29 � 81 mm (w/h/d) (1 15/16 � 1 3/16 � 3 1/4 inches) Approx. 130 g (5 oz)
Supplied Accessories Battery charger BC-CSQ (1) Rechargeable batteries NH-AA-DA (2) AC adaptor AC-LS5 (1) Carrying case LCS-CP2 (1) Battery case (1) Power cord (1) Shoulder strap (1) Operating Instructions (1) Warranty card (1) Important Safe Guard (1)
Design and specifications are subject to change without notice.
ACCESSORY KIT
9-876-251-11
Sony EMCS Co.
2003B0500-1 C 2003. 2 Published by DI Customer Center
|
|
|
> |
|
