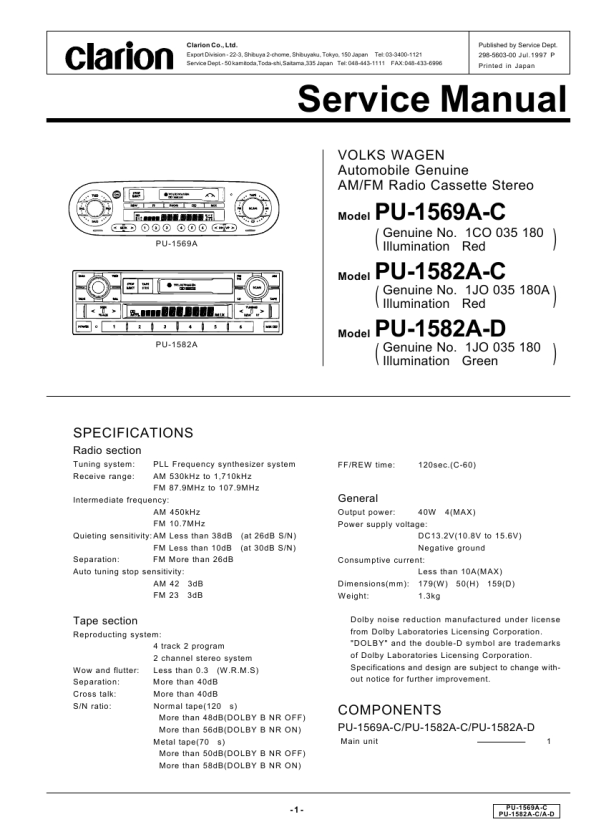

CLARION 1JO035180
Manual de Servicio

Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 03-3400-1121 Service Dept.- 50 kamitoda,Toda-shi,Saitama,335 Japan Tel: 048-443-1111 FAX:048-433-6996

Published by Service Dept. 298-5603-00 Jul.1997 P Printed in Japan

Service Manual
VOLKS WAGEN Automobile Genuine AM/FM Radio Cassette Stereo
Model
PU-1569A

PU-1569A-C ( Genuine No. 1CO 035 180 ) Illumination�Red PU-1582A-C ( Genuine No. 1JO 035 180A ) Illumination�Red PU-1582A-D 180 ( Genuine No. 1JO 035 ) Illumination�Green

Model

Model
PU-1582A

�SPECIFICATIONS
Radio section
PLL Frequency synthesizer system AM 530kHz to 1,710kHz FM 87.9MHz to 107.9MHz Intermediate frequency: AM 450kHz FM 10.7MHz Quieting sensitivity: AM Less than 38dBμ(at 26dB S/N) FM Less than 10dBμ(at 30dB S/N) Separation: FM More than 26dB Auto tuning stop sensitivity: AM 42±3dBμ FM 23±3dBμ Tuning system: Receive range: FF/REW time: 120sec.(C-60)

General
Output power: 40W�4(MAX) Power supply voltage: DC13.2V(10.8V to 15.6V) Negative ground Consumptive current: Less than 10A(MAX) Dimensions(mm): 179(W)�50(H)�159(D) Weight: 1.3kg
� Dolby noise reduction manufactured under license

Tape section
Reproducting system: 4 track 2 program 2 channel stereo system Wow and flutter: Separation: Cross talk: S/N ratio: Less than 0.3�(W.R.M.S) More than 40dB More than 40dB Normal tape(120μs) More than 48dB(DOLBY More than 56dB(DOLBY Metal tape(70μs) More than 50dB(DOLBY More than 58dB(DOLBY

from Dolby Laboratories Licensing Corporation. � "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. � Specifications and design are subject to change without notice for further improvement.

�COMPONENTS
B NR OFF) B NR ON) B NR OFF) B NR ON)

PU-1569A-C/PU-1582A-C/PU-1582A-D
Main unit
������

1

-1-

PU-1569A-C PU-1582A-C/A-D
